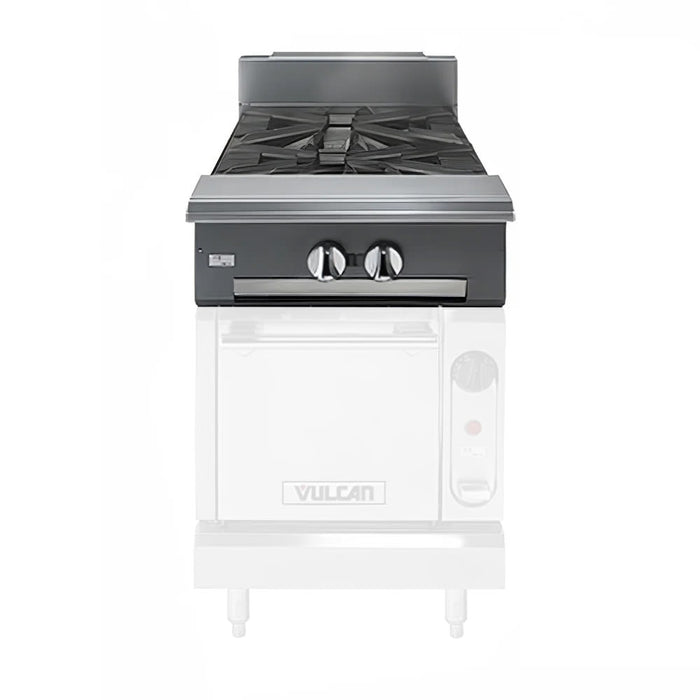

Vulcan V2B12 12" 2 Burner Gas Range Top - Modular, Liquid Propane
The Vulcan V2B12 gas range is a modular unit for application on stainless stands and existing countertops. It measures 12 inches wide by 36 3/4 inches deep by 17 15/16 inches high, and it includes a front top ledge for plating cooked dishes. To vary its height and prevent damage to countertops, it sits on 4-inch flanged feet. Because this unit is constructed of stainless steel, it resists corrosion and is durable enough for high-volume use.
For versatility, the Vulcan V2B12 commercial range features two 35,000-BTU burners that accommodate stir fry or stew preparation. Each burner features cast iron grate tops that vary in size. Its front measures 11 1/2 inches wide by 11 1/2 inches deep, and its rear grate measures 11 1/2 inches wide by 14 inches deep. Great for high-intensity kitchens, this unit can be batteried with other pieces of equipment.
- Part of the V series
- (2) 35,000-BTU open burners
- Individual burner pilots and controls
- Cast iron grates
- Modular frame for placement on counter or table
- Stainless steel front, front top ledge, sides, base, burner box, and 4-in. stub riser
- 4-in. flanged feet
- Front grate: 11 1/2 in. W x 11 1/2 in. D
- Rear grate: 11 1/2 in. W x 14 in. D
- Overall: 12 in. W x 36 3/4 in. D x 17 15/16 in. H
- 70,000 BTU
- LP gas powered
Specifications
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Heavy Duty |
| Base | Modular |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Depth (in) | 36.75 |
| Gas Inlet Size | 1.25 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Number of Burners | 2 |
| Number of Ovens | No Oven |
| Open Burner BTU (ea) | 33000 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Racks per Standard Oven | No Rack |
| Range Configuration | Burners |
| Rating | Best |
| Series | V Series |
| Total BTU | 70000 |
| Vent | Stub Riser |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 12 |
| Weight | 110.00 |
