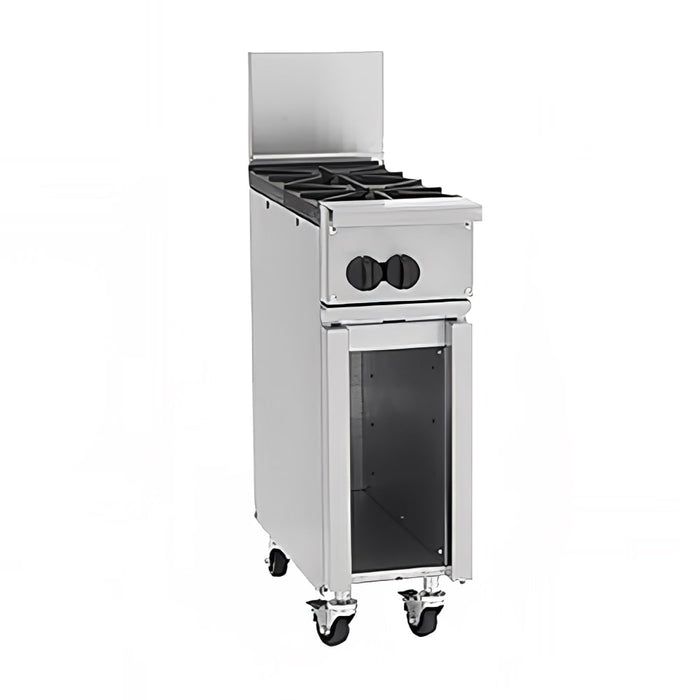

Vulcan V2B12B 12" 2 Burner Gas Range W/ Storage Base, Natural Gas
To operate with high efficiency and versatility in back-of-the-house kitchens, the Vulcan V2B12B gas range features two 35,000-BTU burners. Both burners are covered with cast iron grates to accommodate stock pots and other pieces of cookware for preparation of stews or soups. Its front burner measures 11 1/2 inches wide by 11 1/2 inches deep, and its rear grate measures 11 1/2 inches wide by 14 inches deep. Because the grate dimensions differ, this unit can accommodate various sizes of cookware for different cooking needs.
The Vulcan gas range includes a cabinet base that can provide storage for extra saucepans or cooking supplies. Durable and corrosion resistant, this unit has a stainless steel top ledge, base, and sides. To accommodate uneven floors, it stands on 6-inch legs that can be adjusted to various heights. Overall, this unit measures 12 inches wide by 36 3/4 inches deep by 36 inches high. To streamline operation with other units without forgoing worker safety, it's equipped with a 1 1/4-inch manifold and 4-inch stub riser at the back.
- Part of the V Series
- (2) 35,000-BTU 2-piece open burners
- Individual pilots and burner controls
- Cast iron grates
- Stainless steel top ledge, sides, base, burner box, and 4-in. stub riser
- Cabinet base with stainless steel door
- 6-in. adjustable legs
- 1 1/4-in. diameter gas manifold
- Front grate: 11 1/2 in. W x 11 1/2 in. D
- Rear grate: 11 1/2 in. W x 14 in. D
- Overall: 12 in. W x 36 3/4 in. D x 36 in. H
- 70,000 BTU
- Natural gas powered
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Storage |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Depth (in) | 36.75 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Number of Burners | 2 |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Burners |
| Rating | Best |
| Series | V Series |
| Total BTU | 70000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 12 |
| Weight | 160.00 |
