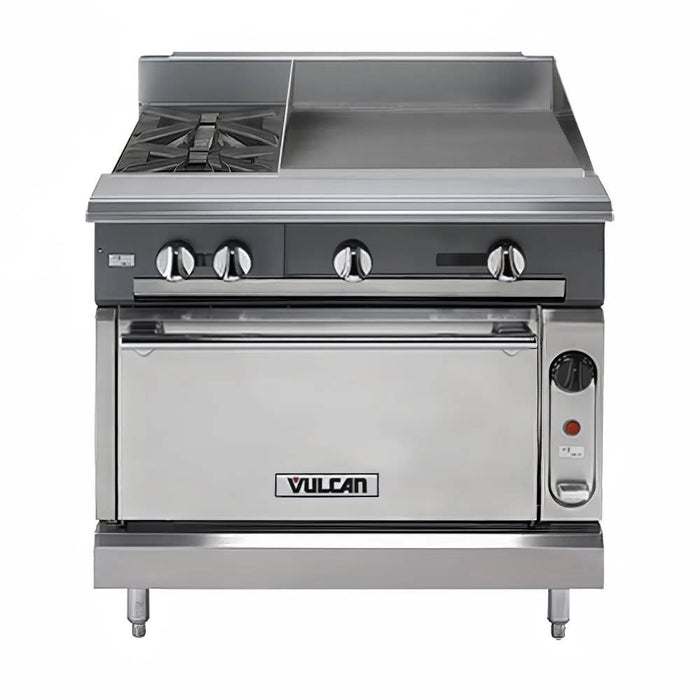

Vulcan V2BG24S 36" 2 Burner Gas Range W/ Griddle & Standard Oven, Liquid Propane
Great for baking, broiling, and roasting, the Vulcan V2BG24S LP gas range features a standard oven base and measures 36 inches wide by 41 7/8 inches deep by 40 1/2 inches high overall. Its 27-inch-wide by 27-inch-deep by 13-inch-high baking chamber is made of porcelain and comes with one rack that can be raised and lowered between three rails. To withstand rigorous use in busy kitchens, its heavy-duty door is attached by counterweight hinges, and its 6-inch adjustable legs enhance stability. For flexible temperature adjustment, this unit has an operating temperature range of 150 to 550 degrees Fahrenheit.
The Vulcan V2BG24S V-series range's front, top ledge, burner box, base, stub back, and sides are constructed of corrosion-resistant stainless steel. For versatile cooking it has a dual-range top with two griddle burners and two open cast burners, all of which are connected to independent pilots and temperature controls. Ideal for stock pots and frying pans, this unit has two cast iron gratesa€”11 inches by 17 inches in the front and 14 inches by 17 inches in the back. Its manual griddle has a 24-inch-long by 3/4-inch-thick griddle plate and is constructed of ground steel. For simplified cleaning, this range features a stainless steel 4-inch stub riser and extra-deep crumb tray.
- Featured in the Vulcan V series
- Stainless steel front, front top ledge, sides, burner box, base, and stub back
- (2) 35,000-BTU cast burners with lift-off heads
- (2) 30,000-BTU griddle burners
- Individual pilots and burner controls
- Extra-deep crumb tray made of stainless steel
- Heavy-duty cast grates
- 4-in. stainless steel stub riser
- 11-in. x 17-in. front grate
- 14-in. x 17-in. rear grate
- 24-in. manual griddle
- 3/4-in.-thick ground steel griddle plate
- Operating temperature range: 150-550 degrees F
- Easy-to-clean porcelain baking chamber
- Includes 1 rack adjustable to 3 positions
- Oven door is heavy duty with counterweight hinges
- 6-in. adjustable legs
- 50,000-BTU burner
- Oven interior: 27 in. W x 27 in. D x 13 in. H
- Overall: 36 in. W x 41 7/8 in. D x 40 1/2 in. H
- 4 A
- 115 V/60 Hz/1 ph, 9-ft. cord with plug
- Powered by LP gas
- 1/4-in.-diameter front gas manifold
- 1 1/4-in.-diameter rear gas connection
- 180,000 BTU
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Standard Oven |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Depth (in) | 41.87 |
| Gas Type | LP |
| Griddle Width (in) | 24 |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | 2 |
| Number of Ovens | Single |
| Plate Thickness (in) | 3/4 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 3 |
| Racks per Standard Oven | 1 |
| Range Configuration | Burners/Griddle |
| Rating | Best |
| Series | V Series |
| Total BTU | 180000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 648.00 |
