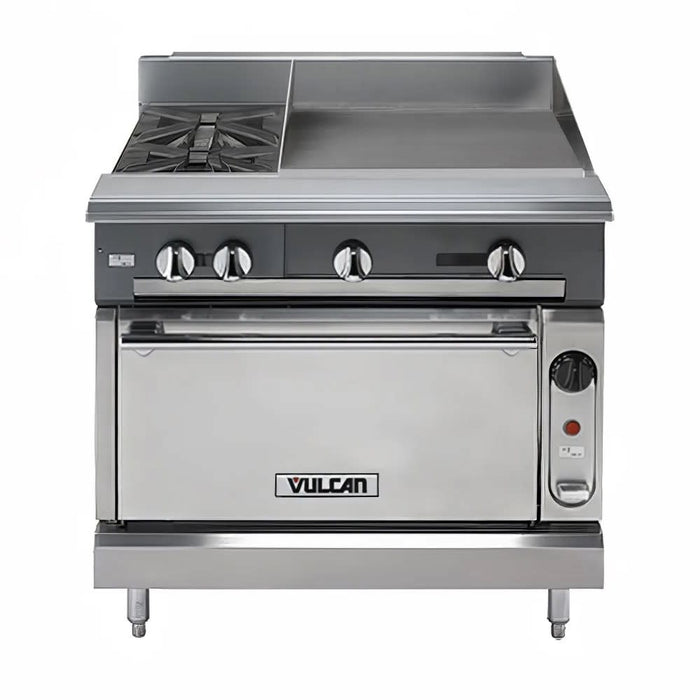

Vulcan V2BG24S 36" 2 Burner Gas Range W/ Griddle & Standard Oven, Natural Gas
Suitable for an array of cooking applications, the Vulcan V2BG24S natural gas range features two lift-off cast burners and two griddle burners. Each burner has independent pilots and controls for precise temperature modification, and for lasting performance the grates are heavy-duty cast iron. To boil, saute, and pan-fry, this unit has an 11-inch by 17-inch front grate and 14-inch by 17-inch rear grate. For grilling burgers or breakfast items it features a manual griddle with a 24-inch long by 3/4-inch thick ground steel plate. It stainless steel front, top ledge, burner box, base, stub back, and sides are corrosion-resistant for long-term durability, and to simplify cleaning this range's 4-inch stub riser and extra-deep crumb tray are also constructed of stainless steel.
In conjunction with open burners and a griddle, the Vulcan V2BG24S range has a standard oven base with a 27-inch-wide by 27-inch-deep by 13-inch-high porcelain baking chamber. It includes three rack rails with one adjustable rack and sports a heavy-duty oven door attached to counterweight hinges. Ideal for baking and roasting, this 36-inch-wide by 41 7/8-inch-deep by 40 1/2-inch-high oven has an operating temperature range of 150 to 550 degrees Fahrenheit, and for stability on uneven flooring it's mounted to 6-inch adjustable legs.
- Part of the V series
- Stainless steel front, front top ledge, burner box, sides, base, and stub back
- (2) 35,000-BTU cast burners with lift-off heads
- (2) 30,000-BTU griddle burners
- Independent pilots and controls per burner
- Stainless steel extra-deep crumb tray
- Heavy-duty cast grates
- 4-in. stainless steel stub riser
- 11-in. x 17-in. front grate
- 14-in. x 17-in. rear grate
- 24-in. manual griddle
- 3/4-in.-thick ground steel griddle plate
- Operating temperature range: 150-550 degrees F
- Porcelain baking chamber
- Includes 1 rack
- 3 rack positions
- Heavy-duty door with counter-weight hinges
- 6-in. adjustable legs
- 50,000 BTU burner
- Oven interior: 27 in. W x 27 in. D x 13 in. H
- Overall: 36 in. W x 41 7/8 in. D x 40 1/2 in. H
- 4 A
- 115 V/60 Hz/1 ph, 9-ft. cord with plug
- Powered by natural gas
- 1/4-in.-diameter front gas manifold
- 1 1/4-in.-diameter rear gas connection
- 180,000 BTU
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Standard Oven |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Depth (in) | 41.87 |
| Gas Type | NG |
| Griddle Width (in) | 24 |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | 2 |
| Number of Ovens | Single |
| Plate Thickness (in) | 3/4 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 3 |
| Racks per Standard Oven | 1 |
| Range Configuration | Burners/Griddle |
| Rating | Best |
| Series | V Series |
| Total BTU | 180000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 648.00 |
