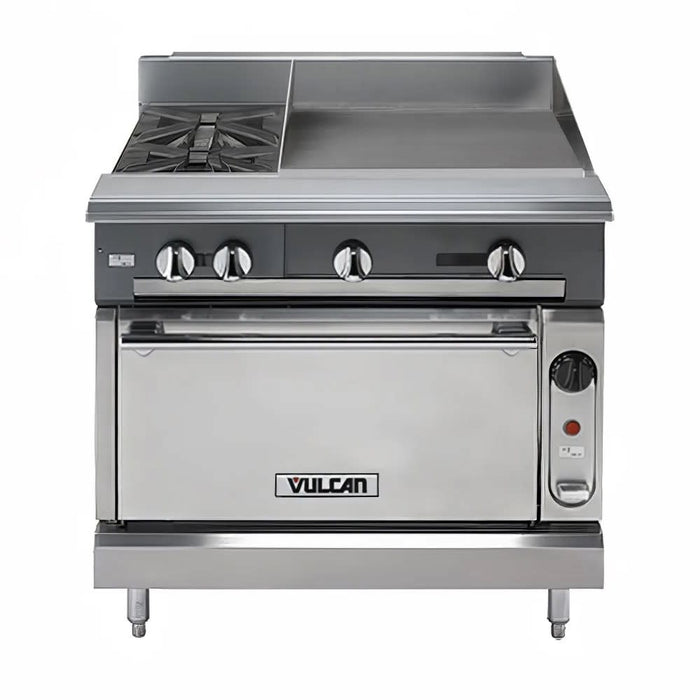

Vulcan V2BG4TB 36" 2 Burner Gas Range W/ Griddle & Storage Base, Liquid Propane

SKU V2BG4TB-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$10,772.15
$10,772.15 - $10,772.15
Current price $10,772.15

The Vulcan V2BG4TB V-series gas range features a stainless steel front, top ledge, burner box, base, stub back, and sides while sporting a versatile, dual-range top. With two open, lift-off cast burners and two griddle burners, this unit is capable of boiling, pan-frying, and grilling simultaneously. For optimal temperature control, each burner has independent pilots and temperature dials, and for longevity, the grates are constructed of heavy-duty cast iron. The front grate measures 11 inches by 17 inches, while the rear grate measures 14 inches by 17 inches, and for quick heating its 24-inch-long by 3/4-inch-thick T-Stat griddle plate is made of ground steel. To simplify cleaning, this range's 4-inch stub riser and extra-deep crumb tray are corrosion-resistant stainless steel.

To expand storage space in compact kitchens, the Vulcan V2BG4TB range has a cabinet base. It's mounted atop four 4-inch legs with flanged feet and measures 36 inches wide by 36 3/4 inches deep by 36 inches high. Because this unit operates using LP gas, it requires a 1/4-inch-diameter front gas manifold and 1 1/4-inch rear gas connection.

  • Part of Vulcan's V series
  • Front, front top ledge, burner box, stub back, sides, and base made of durable stainless steel
  • (2) 35,000-BTU cast burners with lift-off heads
  • (2) 30,000-BTU griddle burners
  • Independent pilots and burner controls
  • Stainless steel extra-deep crumb tray
  • Cast grates
  • 4-in. stainless steel stub riser
  • 11-in. x 17-in. front grate
  • 14-in. x 17-in. rear plate
  • 24-in. T-Stat griddle plate
  • 3/4-in. thick ground steel plate
  • Cabinet base

  • Overall: 36 in. W x 36 3/4 in. D x 36 in. H
  • Powered by LP gas
  • 1/4-in.-diameter front gas manifold
  • 1 1/4-in.-diameter rear gas connection
  • 130,000 BTU

Specifications

Manufacturer Vulcan
Application Heavy Duty
Base Storage
BTU / Burner 35000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Thermostatic
Depth (in) 36.75
Gas Type LP
Griddle Width (in) 24
Heat Gas
Height (in) 36
Installation Type Freestanding
Number of Burners 2
Number of Ovens No Oven
Plate Thickness (in) 3/4
Product Gas Ranges
Product Type Cooking Equipment
Range Configuration Burners/Griddle
Rating Best
Series V Series
Total BTU 130000
Vent Stub Back
Warranty 1-year Limited Parts & Labor
Width (in) 36
Weight 467.00
