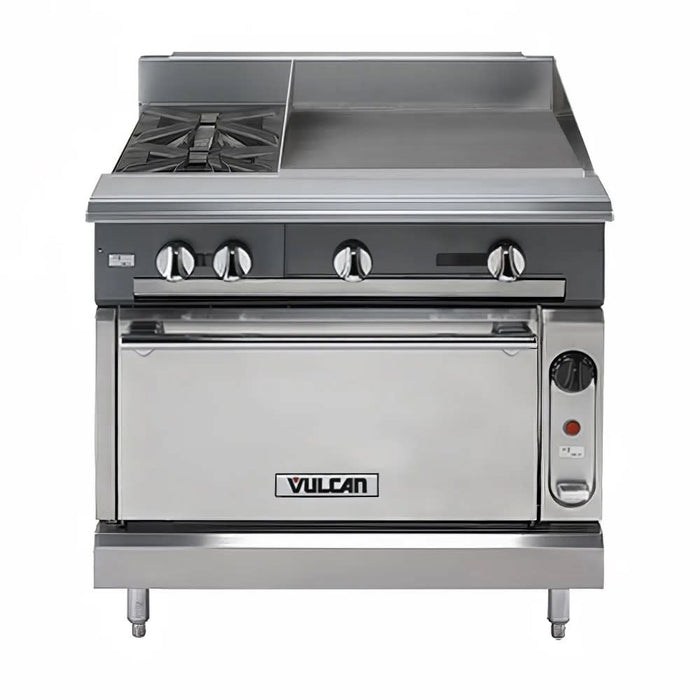

Vulcan V2BG4TC 36" 2 Burner Gas Range W/ Griddle & Convection Oven, Liquid Propane
Ideal for compact kitchens, the Vulcan V2BG4TC V-series gas range features a dual-top design with two open, lift-off cast burners and two griddle burners. Each burner has independent pilots and controls for flexible temperature adjustments, and for lasting durability the grates are cast iron. The front burner measures 11 inches by 17 inches, while the back burner measures 14 inches by 17 inches. For direct, on-surface cooking it has a 24-inch long by 3/4-inch thick, ground steel T-stat griddle. To ease cleaning, this range's 4-inch stub riser and extra-deep crumb tray are constructed of stainless steel.
To evenly bake breads, cookies, and roasts, the Vulcan V2BG4TC range has a convection oven base that can operate between 175 and 550 degrees Fahrenheit. Its 27-inch-wide by 27-inch-deep by 13-inch-high chamber is made of porcelain and includes three rack rails with two adjustable racks. Great for busy kitchens, its heavy-duty door is equipped with counterweight hinges, and for stability, it's mounted on 6-inch adjustable legs. Overall, this unit measures 36 inches wide by 36 3/4 inches deep by 36 inches high and is powered by LP gas.
- Featured in Vulcan's V series
- Stainless steel front, front top ledge, burner box, sides, base, and stub back
- (2) 35,000-BTU cast burners with lift-off heads
- (2) 30,000-BTU griddle burners
- Individual pilots and burner controls
- Stainless steel extra-deep crumb tray
- Heavy-duty cast grates
- 11-in. x 17-in. front grate
- 14-in. x 17-in. rear grate
- 24-in. T-Stat griddle
- 3/4-in.-thick, ground steel plate
- 4-in. stainless steel stub riser
- Operating temperature range: 175-550 degrees F
- Porcelain oven cavity
- Includes 2 racks with 3 position options
- Heavy-duty oven door with counter-weight hinges
- 6-in. adjustable legs
- 32,000-BTU convection burner
- Oven interior: 27 in. W x 27 in. D x 13 in. H
- Overall: 36 in. W x 36 3/4 in. D x 36 in. H
- 4 A
- 115 V/60 Hz/1 ph, 9-ft. cord with plug
- Powered by LP gas
- 1/4-in.-diameter front gas manifold
- 1 1/4-in.-diameter rear gas connection
- 162,000 BTU
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Convection Oven |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Thermostatic |
| Depth (in) | 36.75 |
| Gas Type | LP |
| Griddle Width (in) | 24 |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Number of Burners | 2 |
| Number of Ovens | Single |
| Plate Thickness (in) | 3/4 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 3 |
| Racks per Convection Oven | 2 |
| Range Configuration | Burners/Griddle |
| Rating | Best |
| Series | V Series |
| Total BTU | 162000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 726.00 |
