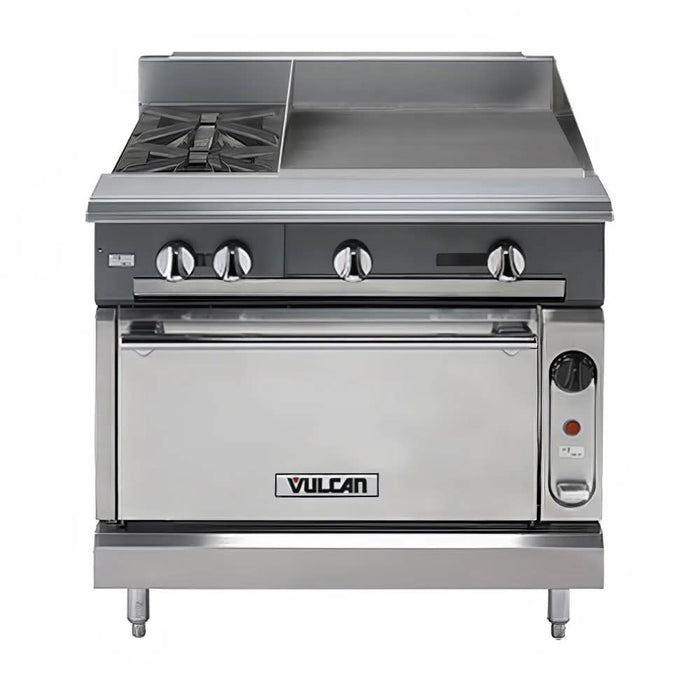

Vulcan V2BG4TC 36" 2 Burner Gas Range W/ Griddle & Convection Oven, Natural Gas

SKU V2BG4TC-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$17,153.40
$17,153.40 - $17,153.40
Current price $17,153.40

The Vulcan V2BG4TC V-series gas range features a stainless steel front, top ledge, burner box, base, stub back, and sides for enhanced corrosion resistance and durability. Its dual-range top features two open, lift-off cast burners and two griddle burners, all of which are connected to independent pilots and temperature dials for optimal control. Great for large stock pots and frying pans, this unit has an 11-inch by 17-inch front grate and a 14-inch by 17-inch rear grate, and for direct-contact grilling, its ground steel T-stat griddle plate measures 24 inches long by 3/4 inches thick. For simplified cleaning, this range's 4-inch stub riser and extra-deep crumb tray are constructed of stainless steel, while its removable grates are constructed of heavy duty cast iron.

To bake, roast, and broil various menu items, the Vulcan V2BG4TC range has a convection oven base with a 27-inch-wide by 27-inch-deep by 13-inch-high porcelain baking chamber. For flexibility, it includes three rack rails with two adjustable racks and can be set to a temperature between 175 and 550 degrees Fahrenheit. It's mounted on 6-inch adjustable legs for stability, and to withstand extensive use, its heavy-duty door is equipped with counterweight hinges. Ideal for establishments with gas hookups, this 36-inch-wide by 36 3/4-inch-deep by 36-inch-high unit is powered by natural gas.

  • Featured in Vulcan's V series
  • Stainless steel front, front top ledge, burner box, sides, base, and stub back
  • (2) 35,000-BTU cast burners with lift-off heads
  • (2) 30,000-BTU griddle burners
  • Individual pilots and controls
  • Stainless steel extra-deep crumb tray
  • Heavy-duty cast grates
  • 4-in. stainless steel stub riser
  • 24-in. T-Stat griddle with 3/4-in.-thick ground steel plate
  • 11-in. x 17-in. front grate
  • 14-in. x 17-in. rear grate

  • Operating temperature range: 175-550 degrees F
  • Porcelain oven cavity streamlines cleaning
  • Includes 2 racks and 3 rack positions
  • Heavy-duty oven door with counterweight hinges
  • 6-in. adjustable legs
  • 32,000-BTU convection burner

  • Oven interior: 27 in. W x 27 in. D x 13 in. H
  • Overall: 36 in. W x 36 3/4 in. D x 36 in. H
  • 4 A
  • 115 V/60 Hz/1 ph, 9-ft. cord with plug
  • Powered by natural gas
  • 1/4-in.-diameter front gas manifold
  • 1 1/4-in.-diameter rear gas connection
  • 162,000 BTU

Specifications

Manufacturer Vulcan
Application Heavy Duty
Base Convection Oven
BTU / Burner 35000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Thermostatic
Depth (in) 36.75
Gas Type NG
Griddle Width (in) 24
Heat Gas
Height (in) 36
Installation Type Freestanding
Number of Burners 2
Number of Ovens Single
Plate Thickness (in) 3/4
Product Gas Ranges
Product Type Cooking Equipment
Rack Positions per Convection Oven 3
Racks per Convection Oven 2
Range Configuration Burners/Griddle
Rating Best
Series V Series
Total BTU 162000
Vent Stub Back
Warranty 1-year Limited Parts & Labor
Width (in) 36
Weight 726.00
