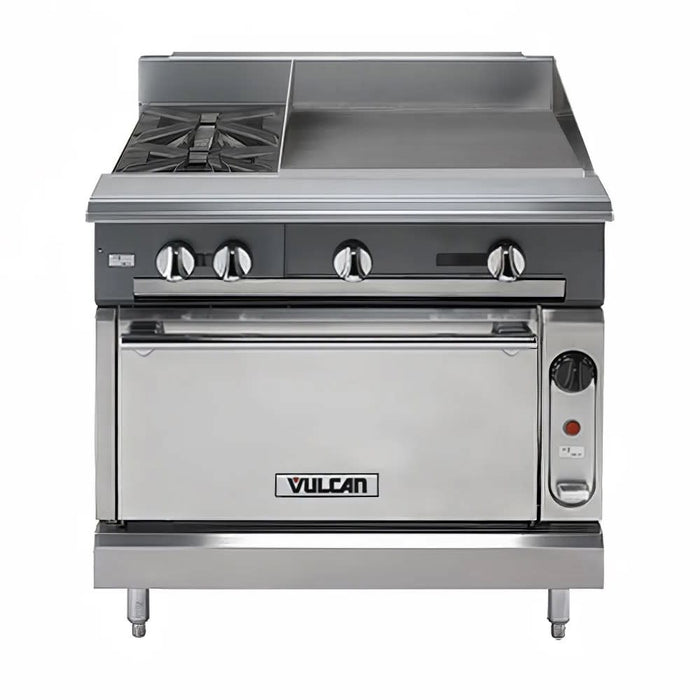

Vulcan V2BG8TB 36" 2 Burner Gas Range W/ Griddle & Storage Base, Liquid Propane

SKU V2BG8TB-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$10,368.02
$10,368.02 - $10,368.02
Current price $10,368.02

To withstand rigorous use in busy kitchens, the Vulcan V2BG4TB V-series gas range features a stainless steel front, top ledge, burner box, base, stub back, and sides. Its dual-range top has two open, lift-off cast burners with cast iron grates and one griddle burnera€”great for boiling, pan-frying, or grilling a variety of menu items. Each of these burners have independent pilots and controls for flexible temperature modification. Suitable for stock pots and frying pans, this unit has an 11-inch by 17-inch front grate and a 14-inch by 17-inch rear grate; its open, T-stat griddle plate measures 18 inches long by 3/4 inches thick and is constructed of ground steel. For simplified cleaning, this range's 4-inch stub riser and extra-deep crumb tray are constructed of stainless steel.

For expanded storage, the Vulcan V2BG4TB range has a cabinet base. Overall, it measures 36 inches wide by 36 3/4 inches deep by 36 inches high and is powered by LP gas. To stabilize this unit on uneven surfaces, it's mounted atop four 4-inch legs with flanged feet. For proper installation, it requires a gas 1/4-inch-diameter front gas manifold and a 1 1/4-inch rear gas connection.

  • Part of the V series
  • Durable stainless steel front, front top ledge, burner box, sides, base, and stub back
  • (2) 35,000-BTU cast burners with lift-off heads
  • (1) 30,000-BTU griddle burner
  • Individual pilots and controls
  • Stainless steel extra-deep crumb tray
  • Heavy-duty cast grates
  • 4-in. stainless steel stub riser
  • 11-in. x 17-in. front grate
  • 14-in. x 17-in. rear plate
  • 18-in. ground steel, T-Stat griddle plate
  • 3/4-in.-thick griddle plate
  • Cabinet base
  • 4 in. adjustable legs with flanged feet

  • 36 in. W x 36 3/4 in. D x 36 in. H
  • Powered by LP gas
  • 1/4-in.-diameter front gas manifold
  • 1 1/4-in.-diameter rear gas connection
  • 100,000 BTU

Specifications

Manufacturer Vulcan
Application Heavy Duty
Base Storage
BTU / Burner 35000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Thermostatic
Depth (in) 36.75
Gas Type LP
Griddle Width (in) 18
Heat Gas
Height (in) 36
Installation Type Freestanding
Number of Burners 2
Number of Ovens No Oven
Plate Thickness (in) 3/4
Product Gas Ranges
Product Type Cooking Equipment
Range Configuration Burners/Griddle
Rating Best
Series V Series
Total BTU 100000
Vent Stub Back
Warranty 1-year Limited Parts & Labor
Width (in) 36
Weight 432.00
