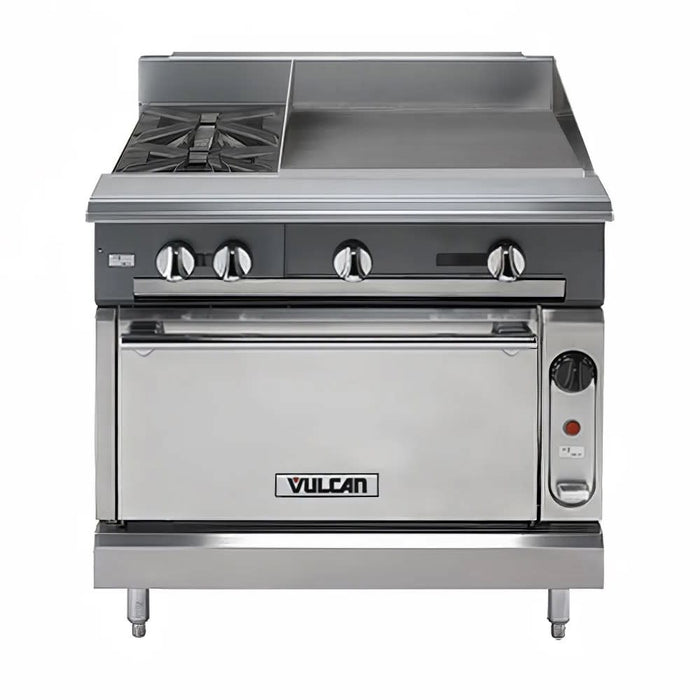

Vulcan V2BG8TB 36" 2 Burner Gas Range W/ Griddle & Storage Base, Natural Gas

SKU V2BG8TB-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$10,368.02
$10,368.02 - $10,368.02
Current price $10,368.02

The Vulcan V2BG4TB V-series gas range's front, top ledge, burner box, base, stub back, 4-inch stub back, crumb tray, and sides are constructed of durable, corrosion-resistant stainless steel. It features two open, lift-off cast burners and two griddle burnersa€”great for boiling, pan-frying, or grilling. For maximized temperature control, each burner has an independent pilot and temperature dial. To support frying pans and stock pots, this unit has an 11-inch by 17-inch front cast iron grate and a 14-inch by 17-inch rear cast iron grate; meanwhile its open, T-stat griddle plate measures 18 inches long by 3/4 inches thick and is constructed of ground steel for direct-surface grilling.

To add storage in compact kitchens, the Vulcan V2BG4TB range has a cabinet base and measures 36 inches wide by 36 3/4 inches deep by 36 inches high overall. Because it's powered by natural gas, it requires a 1/4-inch-diameter front gas manifold and 1 1/4-inch rear gas connection. To stabilize this unit on uneven surfaces, it's mounted on 4-inch legs with flanged feet.

  • Featured in the Vulcan V series
  • Rust-resistant stainless steel front, front top ledge, burner box, sides, base, and stub back
  • (2) 35,000 BTU cast burners with lift-off heads
  • (1) 30,000 BTU griddle burner
  • Burners feature individual pilots and controls
  • Stainless steel extra-deep crumb tray
  • Heavy-duty cast grates
  • 4-in. stainless steel stub riser
  • 11-in. x 17-in. front grate
  • 14-in. x 17-in. rear plate
  • 18-in. ground steel T-stat griddle with 3/4-in.-thick plate
  • 4-in. adjustable legs with flanged feet
  • Cabinet base

  • Overall: 36 in. W x 36 3/4 in. D x 36 in. H
  • Powered by natural gas
  • 1/4-in.-diameter front gas manifold
  • 1 1/4-in.-diameter rear gas connection
  • 100,000 BTU

Specifications

Manufacturer Vulcan
Application Heavy Duty
Base Storage
BTU / Burner 35000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Thermostatic
Depth (in) 36.75
Gas Type NG
Griddle Width (in) 18
Heat Gas
Height (in) 36
Installation Type Freestanding
Number of Burners 2
Number of Ovens No Oven
Plate Thickness (in) 3/4
Product Gas Ranges
Product Type Cooking Equipment
Range Configuration Burners/Griddle
Rating Best
Series V Series
Total BTU 100000
Vent Stub Back
Warranty 1-year Limited Parts & Labor
Width (in) 36
Weight 432.00
