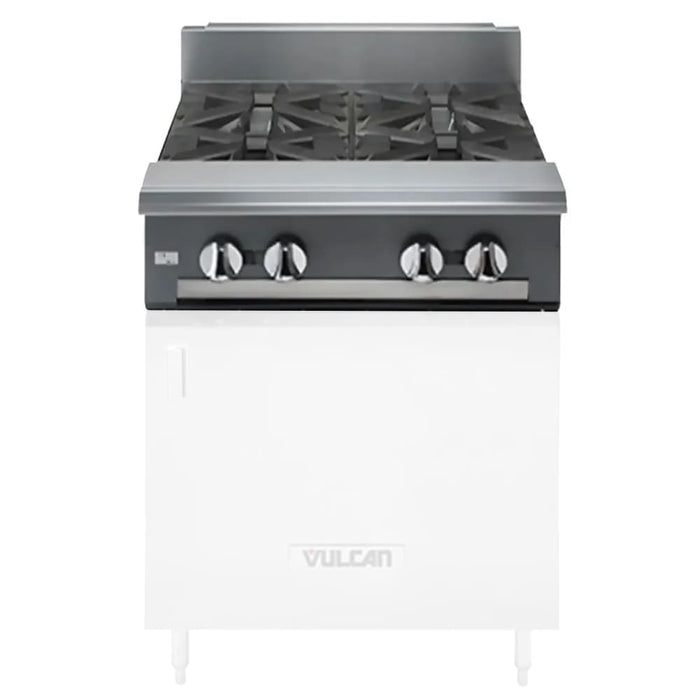

Vulcan V4B24 24" 4 Burner Gas Range Top - Modular, Liquid Propane

SKU V4B24-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$6,812.00
$6,812.00 - $6,812.00
Current price $6,812.00

Because the Vulcan V4B24 heavy-duty gas range is a modular unit, it can be placed on an appropriately sized countertop or workstation. This 24-inch-wide by 36 3/4-inch-deep by 17 15/16-inch-tall unit is made of durable, rust- and corrosion-resistant stainless steel, and to ensure stability, it's mounted on 4-inch flanged feet that can be raised or lowered to prevent rocking or wobbling during use. Overall, this LP-gas-powered unit can output 140,000 BTUs per hour and features a 1 1/4-inch-diameter front gas manifold and 1 1/4-inch rear gas connection

Each of the Vulcan V4B24 commercial range's four open-top burners output 35,000 BTUs, have individual pilot lights and controls, and include heavy cast aeration bowls with removable top cast grates. To accommodate different pot and pan sizes, the two front grates measure 11 1/2 inches by 11 1/2 inches, and the two rear grates are 11 1/2 inches by 14 inches. To encourage thorough cleaning, staff can remove the grates as needed.

  • Featured in the V series
  • Stainless steel construction
  • 4 open-top, 2-piece burners with lift-off heads
  • Each burner sports individual pilot light and control
  • Heavy-duty cast aeration bowls with removable cast top grates
  • (2) 11 1/2-in. x 11 1/2-in. front grates
  • (2) 11 1/2-in. x 14-in. rear grates
  • 4-in. stub riser
  • Modular base
  • 4-in. adjustable flanged feet
  • 140,000 BTU

  • 24 in. W x 36 3/4 in. D x 17 15/16 in. H
  • Powered by LP gas
  • 1 1/4-in. diameter front gas manifold
  • 1 1/4-in. rear gas connection

Specifications

Manufacturer Vulcan
Additional Info Contact Customer Service for altitudes above 2,000 feet
Application Heavy Duty
Base Modular
BTU / Burner 35000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Manual
Depth (in) 36.75
Gas Inlet Size 1.25
Gas Type LP
Heat Gas
Height (in) 36
Installation Type Freestanding
Number of Burners 4
Number of Ovens No Oven
Open Burner BTU (ea) 33000
Product Gas Ranges
Product Type Cooking Equipment
Racks per Standard Oven No Rack
Range Configuration Burners
Rating Best
Series V Series
Total BTU 140000
Vent Stub Riser
Warranty 1-year Limited Parts & Labor
Width (in) 24
Weight 220.00
