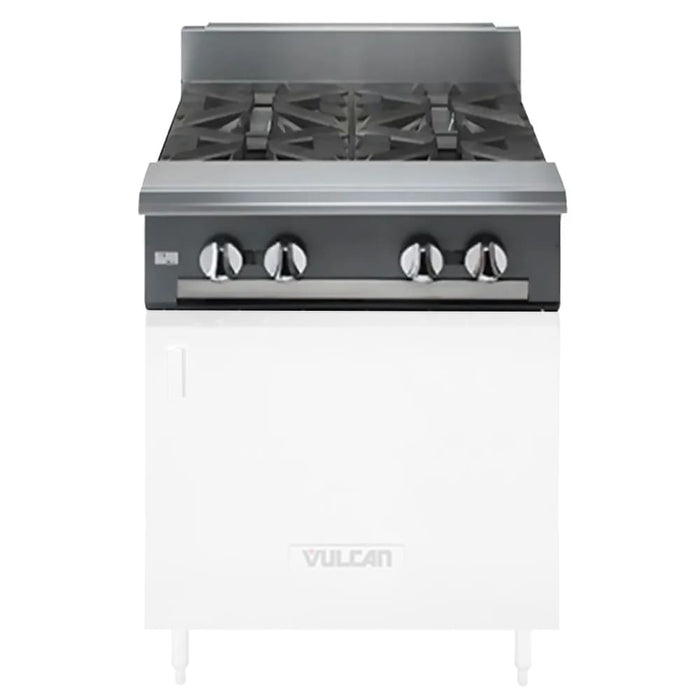

Vulcan V4B24 24" 4 Burner Gas Range Top - Modular, Natural Gas

SKU V4B24-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$6,812.00
$6,812.00 - $6,812.00
Current price $6,812.00

The Vulcan V4B24 V-series heavy-duty gas range is built with a modular base, meaning this 24-inch-wide by 36 3/4-inch-deep by 17 15/16-inch-tall unit is a top-section-only modela€”great for creating an individualized workspace. To complement other pieces of equipment, it's made of rugged, rust- and corrosion-resistant stainless steel that withstands high-volume use and can simply be wiped clean. For enhanced stabilization, its 4-inch flanged feet can be raised or lowered to level the unit. This unit operates with natural gas, outputs 140,000 BTUs per hour, and features a 1 1/4-inch-diameter front gas manifold with a 1 1/4-inch capped rear gas connection to ease installation.

Because each of the Vulcan V4B24NG natural-gas-powered range's four burners has a separate pilot light and controls, staff can simply modify each burner's heat as needed. While the two 11 1/2-inch by 14-inch rear cast grates accommodate large pots and pans, the two 11 1/2-inch by 11 1/2-inch front cast grates are sized for small- or medium-sized cookware. To maintain a sanitary cooktop, the grates are removable for cleaning.

  • Part of Vulcan's V series
  • Heavy-duty stainless steel construction
  • 4 open-top, 2-piece burners with lift-off heads
  • Individual pilot light and controls for each burner
  • Heavy-duty cast aeration bowls
  • Removable cast top grates
  • (2) 11 1/2-in. x 11 1/2-in. front grates
  • (2) 11 1/2-in. x 14-in. rear grates
  • 4-in. stub riser
  • Modular base with 4-in. adjustable flanged feet
  • 140,000 BTU

  • 24 in. W x 36 3/4 in. D x 17 15/16 in. H
  • Powered by natural gas
  • 1 1/4-in. diameter front gas manifold
  • 1 1/4-in. rear gas connection

Specifications

Manufacturer Vulcan
Additional Info Contact Customer Service for altitudes above 2,000 feet
Application Heavy Duty
Base Modular
BTU / Burner 35000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Manual
Depth (in) 36.75
Gas Inlet Size 1.25
Gas Type NG
Heat Gas
Height (in) 36
Installation Type Freestanding
Number of Burners 4
Number of Ovens No Oven
Open Burner BTU (ea) 35000
Product Gas Ranges
Product Type Cooking Equipment
Racks per Standard Oven No Rack
Range Configuration Burners
Rating Best
Series V Series
Total BTU 140000
Vent Stub Riser
Warranty 1-year Limited Parts & Labor
Width (in) 24
Weight 220.00
