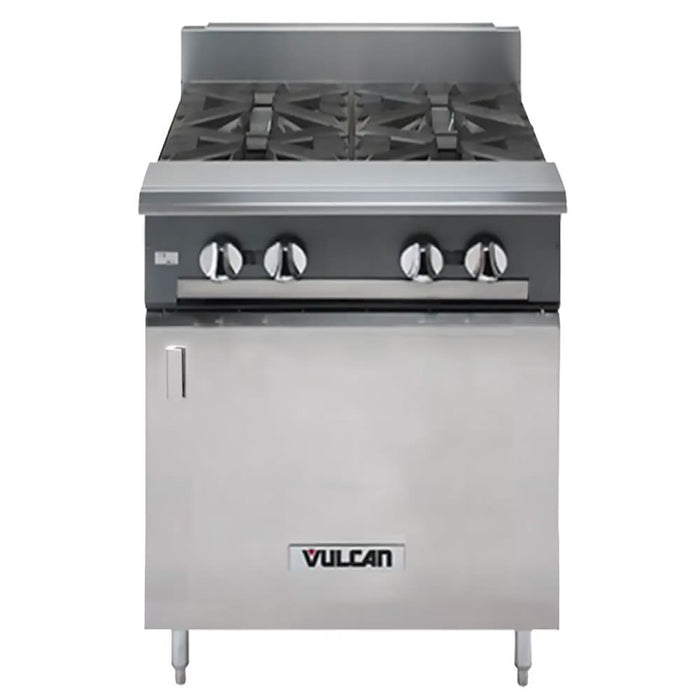

Vulcan V4B24B 24" 4 Burner Gas Range W/ Storage Base, Liquid Propane
The Vulcan V4B24B heavy-duty range is a two-in-one unit, featuring a cabinet base and four open-top burners. This 24-inch-wide by 36 3/4-inch-deep by 36-inch-tall unit's front, front top ledge, sides, base, burner box, and stub back are made of stainless steela€”a resilient, rust- and corrosion-resistant metal capable of withstanding high-volume use. The base's storage cabinet can accommodate frequently used spices, ingredients, or supplies on one removable shelf, and to accommodate various pans, its interior is lined with universal rack guides. For a sleek, professional appearance while securing items in place, the cabinet's door conceals its contents. To ensure stability during operation, its 6-inch legs can be raised or lowered to level the unit on uneven flooring.
So chefs can saute, fry, sear, or steam different ingredients simultaneously, the Vulcan V4B24B gas range's four burners have separate pilot lights and controls. To enhance efficiency, the burners are built with heavy cast aeration bowls featuring cast top grates. While the two rear grates measure 11 1/2 inches by 14 inches, the two front grates are 11 1/2 inches by 11 1/2 inches to accommodate differently sized cookware. For thorough cleaning, the top grates are removable.
- Part of the V series
- Stainless steel front, plate ledge, front top ledge, sides, base, stub back, and legs
- 4 open-top burners featuring lift-off heads
- Separate burner pilots and controls for each burner
- Heavy-duty cast aeration bowls with removable cast top grates
- (2) 11 1/2-in. x 11 1/2-in. front grates
- (2) 11 1/2-in. x 14-in. rear grates
- 4-in. stub riser
- Cabinet base includes universal rack guides and 1 removable shelf
- Stainless steel cabinet base door
- 6-in. adjustable legs
- 140,000 BTU
- 24 in. W x 36 3/4 in. D x 36 in. H
- Powered by LP gas
- 1 1/4-in. diameter front gas manifold
- 1 1/4-in. rear gas connection
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Storage |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Depth (in) | 36.75 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Number of Burners | 4 |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Burners |
| Rating | Best |
| Series | V Series |
| Total BTU | 140000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 295.00 |
