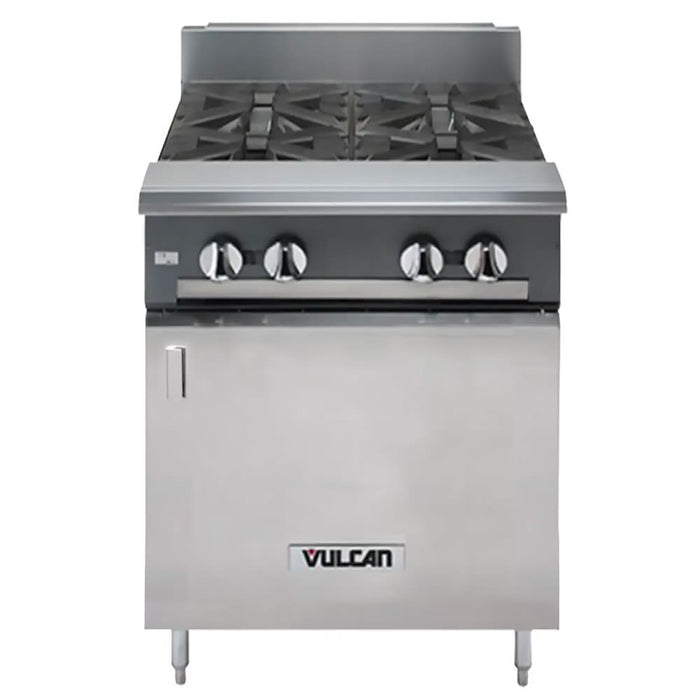

Vulcan V4B24B 24" 4 Burner Gas Range W/ Storage Base, Natural Gas
Because the Vulcan V4B24B heavy-duty range is built with four 35,000-BTU open burners, chefs can saute, fry, sear, or steam different dishes at once. Each burner has a corresponding pilot light and control for quick heat adjustment. For enhanced efficiency, the burners include heavy-duty cast aeration bowls with cast top grates. To accommodate various pots and pans, the two front grates measure 11 1/2 inches by 11 1/2 inches, while the two rear grates measure 11 1/2 inches by 14 inches. To facilitate thorough cleaning, these grates can be removed.
The Vulcan V4B24B natural-gas-powered range features a cabinet base with one removable shelf and universal rack guides to accommodate frequently used items, and to secure stored contents in place, a stainless steel door encloses the base. This 24-inch-wide by 36 3/4-inch-deep by 36-inch-tall unit's front, plate ledge, front top ledge, sides, base, and stub back are made of stainless steel for long-term durability and resistance to rust and corrosion. To reduce the chance of wobbling or rocking during use, it rests on 6-inch stainless steel legs that can be raised or lowered as needed on uneven surfaces.
- Part of the V series
- Stainless steel front, plate ledge, front top ledge, sides, base, stub back, and legs
- (4) 2-piece open-top burners featuring lift-off heads
- 4 pilot lights and burner controls
- Heavy-duty cast aeration bowls
- Removable cast top grates
- (2) 11 1/2-in. x 11 1/2-in. front grates
- (2) 11 1/2-in. x 14-in. rear grates
- 4-in. stub riser
- Cabinet base includes 1 removable shelf and universal rack guides
- Stainless steel cabinet base door
- 6-in. adjustable legs
- 140,000 BTU
- 24 in. W x 36 3/4 in. D x 36 in. H
- Powered by natural gas
- 1 1/4-in. diameter front gas manifold
- 1 1/4-in. rear gas connection
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Storage |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Depth (in) | 36.75 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Number of Burners | 4 |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Burners |
| Rating | Best |
| Series | V Series |
| Total BTU | 140000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 295.00 |
