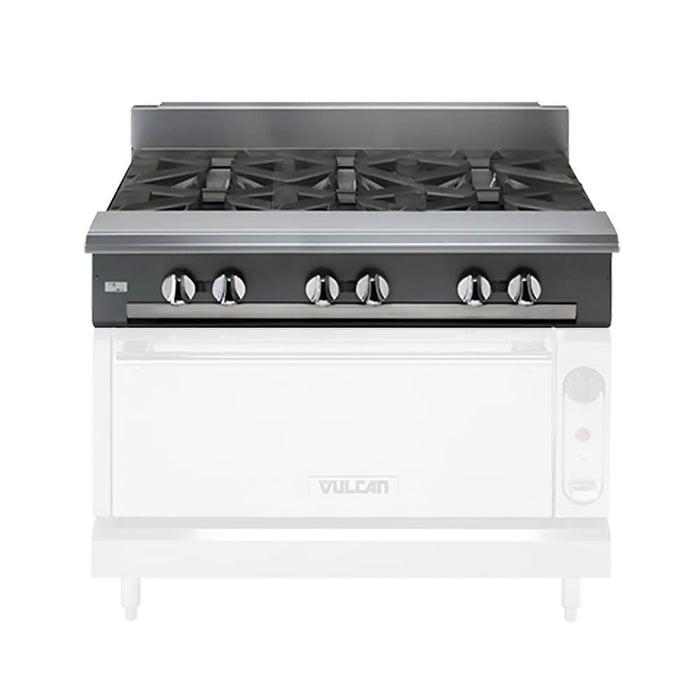

Vulcan V6B36 36" 6 Burner Gas Range Top - Modular, Natural Gas

SKU V6B36-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$8,140.00
$8,140.00 - $8,140.00
Current price $8,140.00

The Vulcan V6B36 V-series heavy-duty gas range is a 36-inch-wide by 36 3/4-inch-deep by 17 15/16-inch-tall unit with a modular base, meaning this unit only features a top section. Its body rests on 4-inch flanged feet that enable attachment to a workstation or countertop. Its front, front top ledge, burner box, sides, base, and stub back are made of stainless steel for long-term rust and corrosion resistance and durability, and this natural-gas powered unit can output 210,000 BTUs per hour.

The Vulcan V6B36 range's six burners each output 35,000 BTUs and have individual pilot lights and controls that let staff properly adjust burner heat to achieve desired results. The two rear burners include heavy-duty cast grates measuring 14 inches by 12 inches to accommodate large pots and pans, while the front 11-inch by 12-inch front grates can support small- or medium-size cookware. Because the grates are separate from the aeration bowls, they simplify cleaning, and an extra-deep stainless steel crumb tray collects food debris during use.

  • Part of the V series
  • Stainless steel front, front top ledge, burner box, sides, base, and stub back
  • (4) 35,000-BTU open-top burners with lift-off heads
  • Each burner has an individual pilot light and control
  • Heavy-duty, lift-off cast grates are separate from aeration bowls
  • (2) 11-in. x 12-in. front grates
  • (2) 14-in. x 12-in. rear grates
  • Extra-deep stainless steel crumb tray
  • 4-in. stub riser
  • Modular base
  • 4-in. adjustable flanged feet
  • 210,000 BTU

  • 36 in. W x 36 3/4 in. D x 17 15/16 in. H
  • Powered by natural gas
  • 1 1/4-in. diameter front gas manifold
  • 1 1/4-in. rear gas connection

Specifications

Manufacturer Vulcan
Additional Info Contact Customer Service for altitudes above 2,000 feet
Application Heavy Duty
Base Modular
BTU / Burner 35000
Burner Configuration Standard
Burner Style Grates
Burner Type(s) Open
Controls Manual
Depth (in) 36.75
Gas Inlet Size 1.25
Gas Type NG
Heat Gas
Height (in) 36
Installation Type Freestanding
Number of Burners 6
Number of Ovens No Oven
Open Burner BTU (ea) 33000
Product Gas Ranges
Product Type Cooking Equipment
Racks per Standard Oven No Rack
Range Configuration Burners
Rating Best
Series V Series
Total BTU 210000
Vent Stub Riser
Warranty 1-year Limited Parts & Labor
Width (in) 36
Weight 400.00
