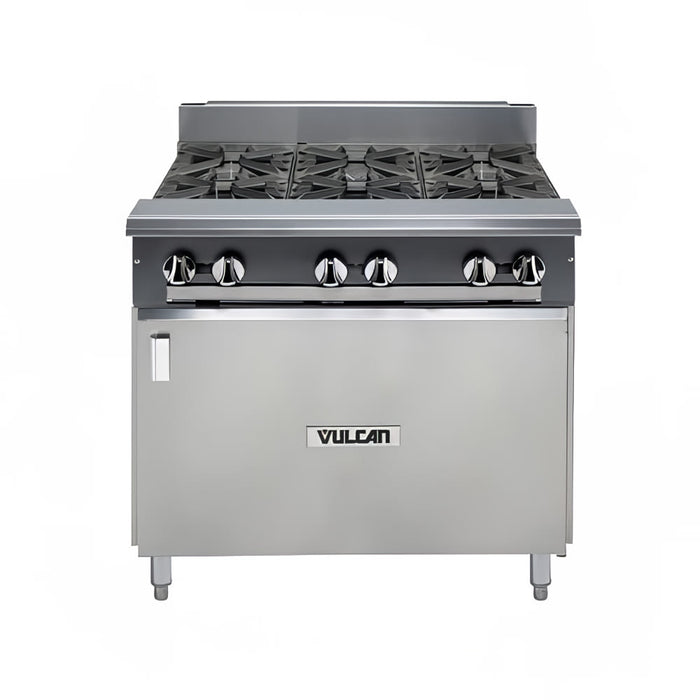

Vulcan V6B36B 36" 6 Burner Gas Range W/ Storage Base, Liquid Propane
The Vulcan V6B36B commercial gas range is configured with six open burners on the top section. Because cooking on burners is so flexible and common, this design is one of the most popular in commercial kitchens. Burners provide heat to the cookware above through a flame, which is generated by LP gas. Grates sit over the burners, holding pots and pans directly over them. These grates are made of durable cast iron, and have a deeper design on the rear to accommodate stock pots.
A crumb tray sits under the top of this Vulcan V6B36B gas range to catch and contain food particles. Along the front, a plate rail provides a place for operators to set utensils or dinnerware for plating. With cabinet storage in the base, pots and pans can be stored in the unit, keeping them close at hand for cooking. Universal rack guides are integrated into the base, and a removable shelf is included. Adjustable, stainless steel legs elevate the range off the floor so users can clean underneath it.
- (6) 35,000 BTU open-top burners
- Separate pilots and heat control knobs for each burner
- Lift-off burner heads ensure operators can access all the parts for cleaning
- Grates are made of durable cast iron to support cookware over burner flames
- Grates are separate from aeration bowls, facilitating cleanup
- Stainless steel crumb tray has a deep design so it can catch debris and food particles
- Stainless steel plate ledge along the front
- Cabinet base provides storage space for pots and pans
- Base has universal rack guides with a removable shelf
- Stainless steel front, sides, and 4-in. rear stub riser
- 6-in. adjustable, stainless steel legs elevate the unit off the floor
- 210,000 total BTU
- Front grates: 12 in. W x 11 in. D
- Rear grates: 12 in. W x 14 in. D
- Overall: 36 in. W x 41 7/8 in. D x 40 1/2 in. H
- Uses LP gas
Specifications
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Heavy Duty |
| Base | Storage |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Depth (in) | 36.75 |
| Gas Inlet Size | 1.25 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Number of Burners | 6 |
| Number of Ovens | No Oven |
| Open Burner BTU (ea) | 35000 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Racks per Standard Oven | No Rack |
| Range Configuration | Burners |
| Rating | Best |
| Series | V Series |
| Total BTU | 210000 |
| Vent | Stub Riser |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 435.00 |
