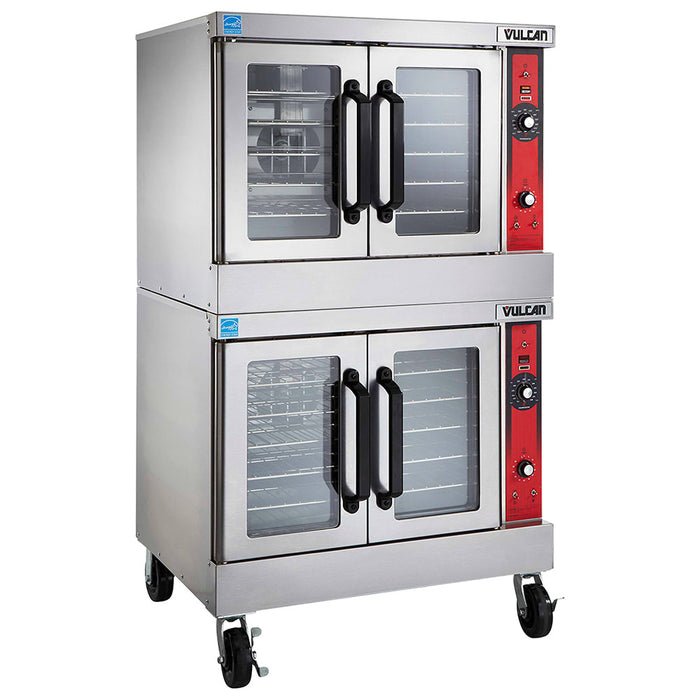

Vulcan VC44EC Double Full Size Electric Convection Oven - 12.5 Kw, 240v/3ph
To support commercial loads of product, the Vulcan VC44EC double-deck electric convection oven has five nickel-plated oven racks that measure 28 1/4 inches wide by 20 1/2 inches deep. Heated by electric, solid-sheath elements, foods are cooked uniformly with a 1/2-horsepower, two-speed oven blower-motor; the unit's insulated top, rear, sides, bottom, and doors retain heat for back-to-back baking. To streamline preparation and operation, computer controls have digital time and temperature readouts, a 99-hour timer with an audible alarm, a roast-and-hold cycle, and 100 programmable menu options.
The Vulcan VC44EC electric convection oven's front, sides, top, and legs are made of durable stainless steel to endure high-volume wear. Each of its four doors opens independently to reduce heat loss and to provide access to specific product; their double-pane windows offer a direct view into the unit to manage cooking. Interior lights in each of the ovens also highlight the interior view. Supported by 8-inch legs, it measures 40 inches wide by 42 1/4 inches deep by 70 inches high.
- Part of the VC44E series
- 2 levels
- 5 nickel-plated racks per oven
- Electric, solid-sheath elements for heating
- Stainless steel front, top, and sides
- Computer controls
- 99-hour timer with alarm
- 100 programmable menu selections
- 2-speed oven blower-motor
- Oven cool switch
- Moisture vent
- Steel ovens have porcelain-enameled interiors
- Independently operated steel doors
- Double-pane windows
- Each section has 2 interior lights
- 8-in. legs
- Rear clearances: 2 in.
- Right side clearances: 4 in.
- Left side clearances: 1 in.
- Oven interiors: (2) 29 in. W x 22 1/8 in. D x 20 in. H
- Oven racks: (10) 28 1/4 in. W x 20 1/2 in. D
- Overall: 40 in. W x 42 1/4 in. D x 70 in. H
- 58-66 A, 12.5 kW, 1/2 HP
- 240 V/60 Hz/3 ph
Specifications
| Manufacturer | Vulcan |
| Base | Legs |
| Controls | Digital |
| Depth (in) | 41.13 |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 70 |
| Hertz | 60 |
| kW | 25 |
| Number of Ovens | Double |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | VC44E Series |
| Size | Full Size |
| Special Features | Cook & Hold |
| Special Features | Programmable |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 40.25 |
| Weight | 880.00 |
