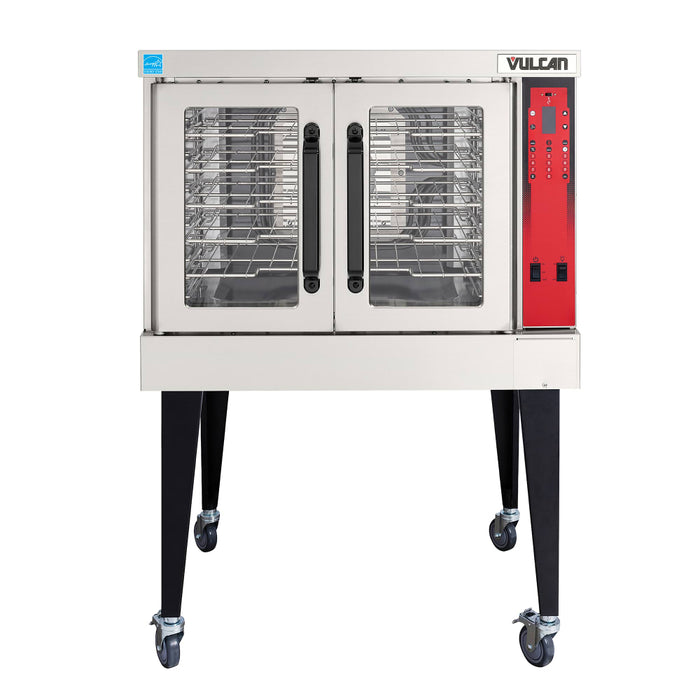

Vulcan VC4EC Single Full Size Electric Convection Oven - 12.5 Kw, 240v/3ph
For resiliency, the Vulcan VC4E single-deck electric convection oven's front, sides, and top are made of durable stainless steel. Its top, rear, sides, bottom, and doors withstand high temperatures because they're insulated with a material that resists sagging over time. The oven's 29-inch-wide by 22 1/8-inch-deep by 20-inch-high frame supports its five 28 1/4-inch-wide by 20 1/2-inch nickel-plated oven racks. To maintain stability throughout operation, it's supported on 23 3/4-inch painted legs.
Users can streamline operations with the computer controls on the Vulcan VC4EC single-deck electric convection oven. It shows the time and temperature digitally, features a 99-hour timer, and enables as many as 100 programmable menu selections, so specific menu items can be cooked at the press of a button. Heated by electric, solid-sheath elements, air from the two-speed oven blower-motor is moved uniformly around product to prevent heat loss. Users can access product directly with the two stainless steel doors, which open independent of one another. They also have double-pane windows that enable users to check cooking progress. Overall, this unit measures 40 inches wide by 42 1/4 inches deep by 52 3/4 inches high to fit numerous kitchen areas.
- Part of the VC4EC series
- 5 nickel-plated racks
- Electric, solid-sheath heating elements
- Stainless steel front, top, and sides
- Computer controls
- 99-hour timer with audible alarm
- Roast-and-hold cycle
- 100 programmable menu selections to streamline operation
- Time and temperature digital readouts
- 2-speed, 1/2-horsepower oven blower-motor
- Integrated, rapid cool-down switch
- Moisture vent
- Porcelain-enameled oven interior
- 2 independently operating steel doors with 2 double-pane windows
- 2 interior oven lights
- 23 3/4-in. painted legs
- Rear clearance: 2 in.
- Right side clearance: 4 in.
- Left side clearance: 1 in.
- Oven interior: 29 in. W x 22 1/8 in. D x 20 in. H
- Oven racks: (5) 28 1/4 in. W x 20 1/2 in. D
- Overall: 40 in. W x 42 1/4 in. D x 54 3/4 in. H
- 12.5 kW, 1/2 HP
- 240 V/60 Hz/3 ph
Specifications
| Manufacturer | Vulcan |
| Base | Legs |
| Controls | Digital |
| Depth (in) | 41.13 |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 54.75 |
| Hertz | 60 |
| kW | 12.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | VC4E Series |
| Size | Full Size |
| Special Features | Cook & Hold |
| Special Features | Programmable |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 40.25 |
| Weight | 440.00 |
