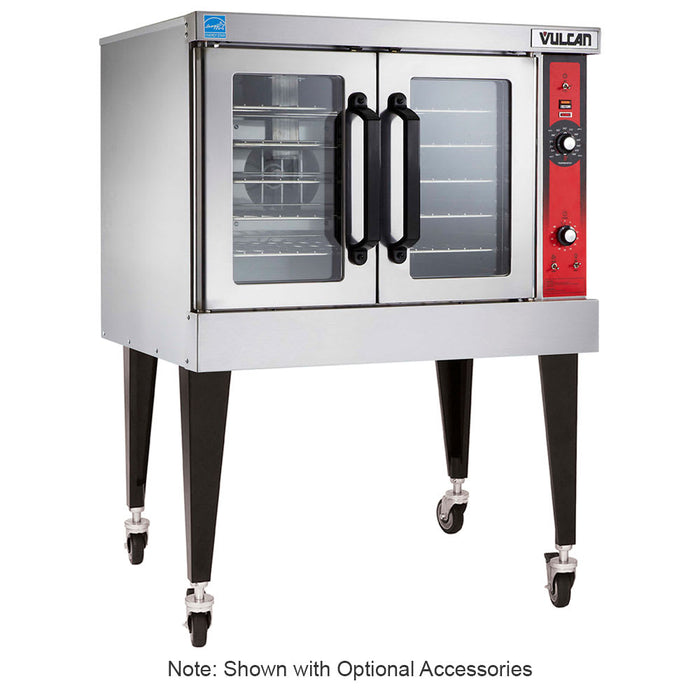

Vulcan VC4ED Single Full Size Electric Convection Oven - 12.5 Kw, 240v/3ph
The Vulcan VC4ED electric convection oven is ideal for baking pastries, cooking meats, and finishing dishes. Adjustable with the control knob, it has a temperature range of 150 to 500 degrees Fahrenheit. A 60-minute timer is included to help staff keep track of the cooking time, and an audible alarm sounds when the timer runs down. An amber light illuminates when the unit is on, and a white light shines when the heating elements are on. Air velocity is controllable with a hi/low switch.
Pans can sit on five 28 1/4-inch-by-20 1/2-inch nickel-plated racks with 11 different positions. Constructed of porcelain, the interior of the cabinet eases cleaning, while its stainless steel exterior is resistant to corrosion, dents, and scratches. The Vulcan VC4ED full-size convection oven has independently operated doors with double pane glass so staff members can see in without opening the doors. Two interior lights shine on product for visibility.
- Resists scratches, dents, and corrosion with its stainless steel construction
- Porcelain enamel interior facilitates cleaning
- (5) 28 1/4-in. x 20 1/2-in. nickel-plated racks adjust to 11 different positions
- Insulation is built into the cabinet to retain heat
- Independently operated doors ease opening
- Product is visible without opening the doors because of double pane windows
- 2 interior lights shine on products
- Heat is provided by the electronic solid sheath elements
- 240 V/60 Hz/3 ph, 12.5 kW, 1/2 HP
- Interior dimensions: 29 in. W x 22 1/8 in. D x 20 in. H
- Overall dimensions: 40 1/4 in. W x 41 1/8 in. D x 54 3/4 in. H
- Temperature range: 150-500 degrees with the solid state temperature control
- 60-min. timer sounds an audible alarm when the cycle is finished
- Moisture is released from the cavities through the vent damper control
- Amber light highlights whether the unit is on or off
- Heating elements are on if the white heat light is illuminated
- Air velocity in the cabinet is controlled by the hi/low fan control
Specifications
| Manufacturer | Vulcan |
| Base | Legs |
| Controls | Digital |
| Depth (in) | 41.13 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 54.75 |
| Hertz | 60 |
| Interior Construction | Stainless Steel |
| kW | 12.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | VC4E Series |
| Size | Full Size |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 40.25 |
| Weight | 450.00 |
