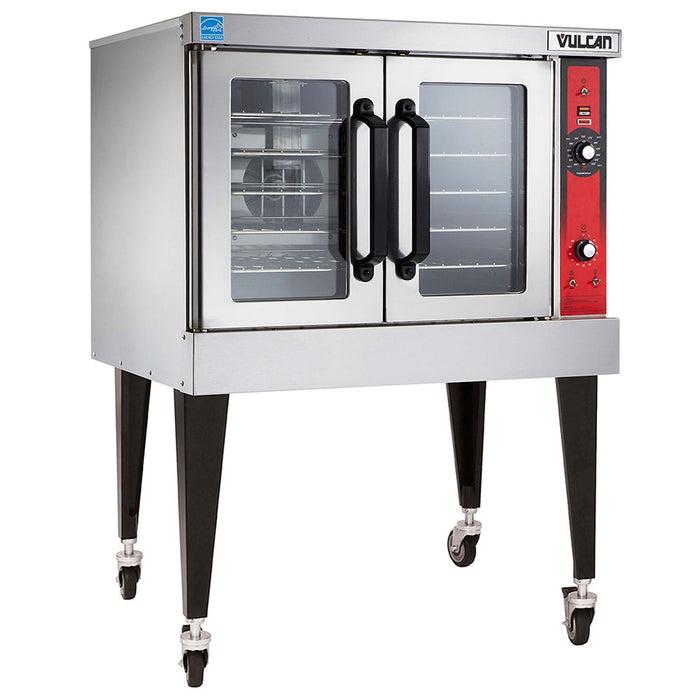

Vulcan VC4GC Single Full Size Natural Gas Convection Oven - 50,000 BTU
Supported by painted legs for stability, the Vulcan VC4G single-deck gas convection oven measures 40 inches wide by 42 1/4 inches deep by 54 3/4 inches high. Its two independently operated stainless steel doors enable users to access different sides of the unit separately, reducing heat loss; their integrated, double-pane windows also enable users to peek inside the oven to ensure cooking progresses smoothly. To withstand high-volume use and common wear, its front, sides, and top are constructed of durable stainless steel; porcelain enamel lining the oven interior has a smooth surface for easy cleaning.
The Vulcan VC4G gas convection oven has a 29-inch-wide by 22 1/8-inch-deep by 20-inch-high frame and includes five nickel-plated oven racks, measuring 28 1/4 inches wide by 20 1/2 inches deep. Using natural gas, a 50,000-BTU burner heats the oven, and a 1/2-horsepower, two-speed oven blower-mover circulates hot air around product. The unit's top, rear, sides, bottom, and doors boast non-sagging insulation, keeping heat inside the oven and maintaining a stable composition over time. Users can streamline operation with the integrated computer controls, which offer digital time and temperature readouts, a 99-hour timer with an audible alarm, and 100 programmable menu selections.
- Part of the VC4G series
- 5 nickel-plated racks in oven
- (1) 50,000-BTU burner
- Stainless steel front, top, and sides
- Top, rear, sides, bottom, and doors feature non-sagging insulation
- Computer controls with digital time and temperature readouts, 99-hour timer with alarm, roast-and-hold cycle, and 100 programmable menu selections
- 2-speed, 1/2-horsepower oven blower-motor
- Rapid, integrated cool-down switch
- Moisture vent to reduce dampness
- Porcelain-enameled oven interior
- 2 independently operating stainless steel doors with 2 double-pane windows
- 2 interior oven lights
- 23 3/4-in. painted legs
- Rear clearance: 2 in.
- Right side clearance: 4 in.
- Left side clearance: 1 in.
- 50,000 BTU
- Oven interior: 29 in. W x 22 1/8 in. D x 20 in. H
- Oven racks: (5) 28 1/4 in. W x 20 1/2 in. D
- Overall: 40 in. W x 42 1/4 in. D x 54 3/4 in. H
- 7.7 A, 1/2 HP
- 120 V/60 Hz/1 ph with 6-foot cord and plug
- Heated by natural gas
- 3/4-in. rear gas connection
Specifications
| Manufacturer | Vulcan |
| Base | Legs |
| Controls | Digital |
| Depth (in) | 41.13 |
| Door Type | Independent |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 54.75 |
| Hertz | 60 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | VC4G Series |
| Size | Full Size |
| Special Features | Cook & Hold |
| Special Features | Programmable |
| Special Features | Spark Ignition |
| Total BTU | 50000 |
| Type | Floor Model |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 40.25 |
| Weight | 497.00 |
