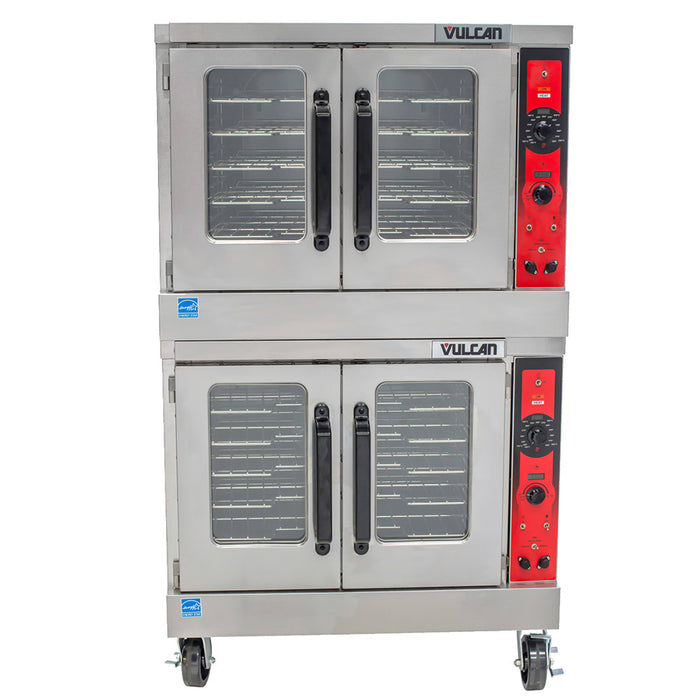

Vulcan VC55ED Double Full Size Electric Convection Oven - 25 Kw, 208v/1ph

SKU VC55ED-2081
Original price $0.00 - Original price $0.00
Original price $0.00
$13,369.00
$13,369.00 - $13,369.00
Current price $13,369.00

To cook many foods simultaneously, the Vulcan VC55ED double-deck electric convection oven includes two oven levels and five nickel-plated oven racks per section. Each oven has porcelain enamel to streamline cleaning, and their interiors measure 29 inches wide by 22 1/8 inches deep by 20 inches high. Heated with electric, solid-sheath elements, each oven is furnished with a two-speed, 1/2-horsepower oven blower-motor. By using the dial controls, operators can adjust the temperatures from 150 to 500 degrees Fahrenheit for desired results; temperature readouts are available on a digital display. This oven has a 5-hour timer with an audible alarm to prevent undercooking or burning.

To decrease temperature quickly in the Vulcan VC55ED electric convection oven, operators can flip the oven cool-down switch for fast cooling. Users also can manage operations with on-board diagnostics to ensure the unit works properly over time. Measuring 40 1/10 inches wide by 40 inches deep by 68 3/5 inches high, overall, this unit is supported by 8-inch stainless steel legs for stability. Its front, sides, top, and legs are made of stainless steel; non-sagging insulation is integrated into the top, rear, sides, doors, and bottom. For direct access to product, each of its four doors open separately, and they're equipped with double-pane windows for a good view into the oven sections.

  • Part of the VC55E series
  • 5 nickel-plated racks per section with 11-position rack guides
  • Uses electric, solid-sheath elements for heating
  • Stainless steel front, top, and sides
  • Top, rear, sides, bottom, and doors have non-sagging insulation
  • Adjustable, solid-state temperature dial controls from 150-500 degrees F
  • Digital readout
  • 5-hour timer with audible alarm
  • 2-speed, 1/2-horsepower oven blower-motor
  • Rapid cool-down switch
  • Moisture vent built in
  • Gentle bake mode selector switch
  • Porcelain-enameled oven interior
  • 4 independently operating stainless steel doors with double-pane windows
  • 2 interior oven lights (1 per section)
  • 8-in. stainless steel legs
  • Rear clearance: 2 in.
  • Right side clearance: 4 in.
  • Left side clearance: 1 in.

  • Oven interiors: (2) 29 in. W x 22 1/8 in. D x 20 in. H
  • Oven racks: (10) 28 1/4 in. W x 20 1/2 in. D
  • Overall: 40 1/10 in. W x 40 in. D x 68 3/5 in. H
  • 120 A, 25 kW, 1/2 HP
  • 208 V/60 Hz/1 ph

Specifications

Manufacturer Vulcan
Base Legs
Controls Manual
Depth (in) 40
Door Type Independent
Heat Electric
Height (in) 70
Hertz 60
kW 25
Number of Ovens Double
Oven Interior Style Standard Depth
Pans Per Deck 5
Phase 1
Product Convection Ovens
Product Type Cooking Equipment
Rating Better
Series VC55E Series
Size Full Size
Type Floor Model
Voltage 208
Warranty 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in) 40.25
Weight 674.00
