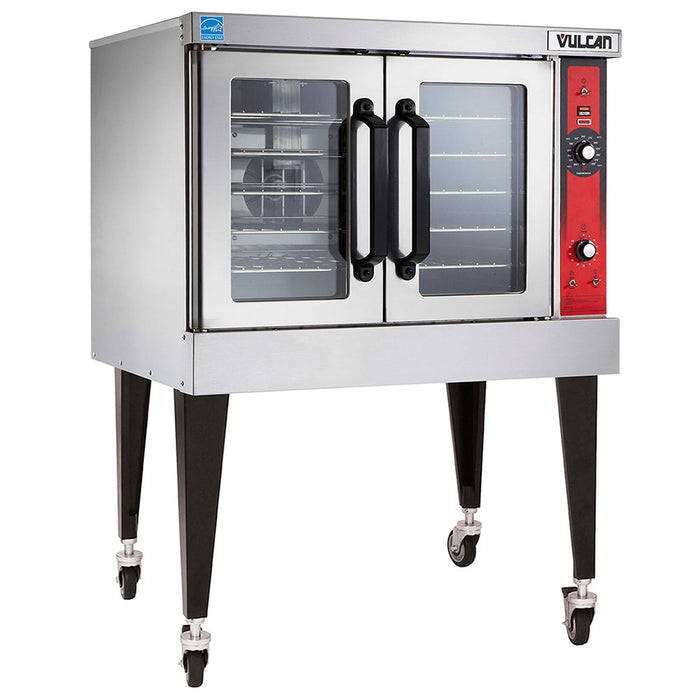

Vulcan VC5ED Single Full Size Electric Convection Oven - 12 1/2 Kw, 240v/3ph
The Vulcan VC5ED single electric convection oven features solid-state controls that enable temperature adjustments from 150 to 500 degrees Fahrenheit. It has a 5-hour timer that counts down until food is ready, and its digital display shows how much time is left. To hold a variety of products, the oven has five nickel-plated racks that can be adjusted to 11 different positions. When ita€™s time to remove product from the cabinet, a switch provides a rapid cool off of the interior for safe retrieval.
To enable operators to monitor food while it cooks, the doors on the Vulcan VC5ED full-size convection oven are made of double-pane glass, and interior lights brighten the view. These doors open individually so employees can access one section of the cabinet at a time. If something goes wrong, on-board diagnostics inform users of the problem, eliminating guesswork when it comes to maintenance. The top, front, and sides of this unit are made of durable stainless steel.
- Operating temperature range: 150-500 degrees F
- Solid-state controls with a digital display
- 5-hr. timer
- 5 oven racks adjustable in 11 positions
- Racks are nickel plated
- Interior light
- Cools rapidly with a cool switch
- Gentle bake mode
- On-board diagnostics eliminate guesswork for maintenance
- 2 doors open individually
- Doors are removable with double-pane windows
- Porcelain and steel interior can be wiped clean
- Top, front, and sides made of durable stainless steel
- Sits on 23 3/4-in. painted legs
- Interior: 29 in. W x 22 1/8 in. D x 20 in. H
- Overall: 40 1/10 in. W x 40 1/8 in. D x 54 in. H
- 12.5 kW, 1/2 HP
- 208 V/60 Hz/3 ph
Specifications
| Manufacturer | Vulcan |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 40 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 54.75 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 12.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | VC5E Series |
| Size | Full Size |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 40.25 |
| Weight | 337.00 |
