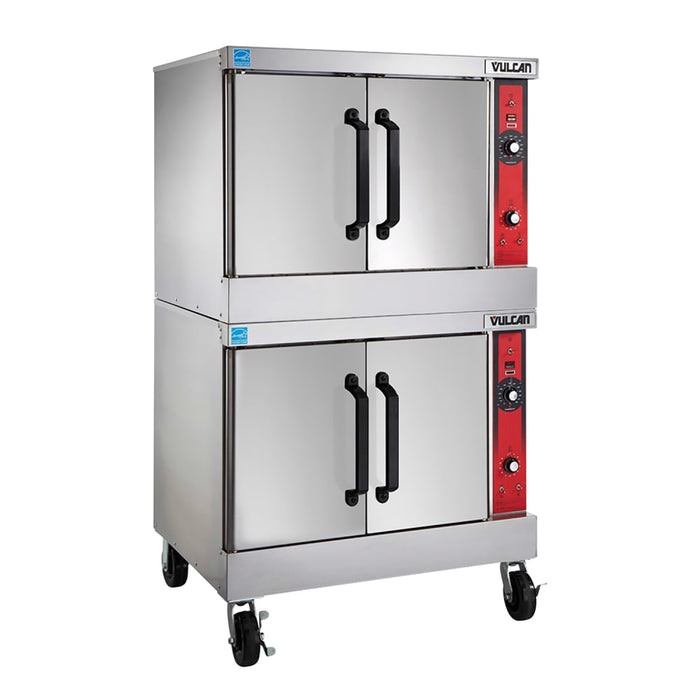

Vulcan VC66ED Bakery Depth Double Full Size Electric Convection Oven - 12.5 Kw, 208v/1ph
The Vulcan VC66ED double full-size convection oven has independent doors that can be opened with one hand, reducing the amount of energy loss. This unit has two decks with bakery-style depths that accommodate full-size pans in side-to-side and front-to-back configurations. Each deck has five oven racks that can be adjusted in 11 different positions, and they're nickel plated for strength. Featuring a temperature range of 150 to 600 degrees Fahrenheit, the unit can be adjusted with solid-state controls. It features a 60-minute timer that informs employees of when food is done cooking. To sweep underneath it, it's positioned on 8-inch legs.
Double-pane windows on the Vulcan VC66ED bakery-depth convection oven enable monitoring of food as it cooks, and interior lights enhance the display. Great for high-volume use, the front, top, sides, and doors are made of durable stainless steel, and the interior is porcelain enameled so it can be wiped clean. Reducing heat loss, the decks have non-sagging insulation, and to eliminate heat when it's time for cleaning, it features a rapid cool-down switch. This unit is heated with solid-sheath heating elements.
- Double deck
- Bakery-depth decks
- Solid-state controls with a 60-minute timer
- Durable stainless steel front, top, sides, and doors
- Doors have double-pane windows for monitoring
- Temperature range: 150-600 degrees F
- Independent doors open 1 at a time
- Rapid cool-down switch
- 5 oven racks per deck with nickel plating
- 11 rack positions
- Moisture vent
- Porcelain-enameled oven interior
- Insulated to reduce heat loss
- Solid-sheath heating elements
- 8-in. legs
- Oven interiors: 29 in. W x 26 1/8 in. D x 20 in. H
- Oven racks: 28 1/4 in. x 24 1/2 in.
- Overall: 40 1/4 in. W x 46 1/4 in. D x 70 in. H
- (2) 60 A, 12.5 kW, 1/2 HP
- (2) 208 V/60 Hz/1 ph
Specifications
| Manufacturer | Vulcan |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 45.13 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 70 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 25 |
| Number of Ovens | Double |
| Oven Interior Style | Deep Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | VC66E Series |
| Size | Full Size |
| Special Features | Deep Depth |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 40.25 |
| Weight | 926.00 |
