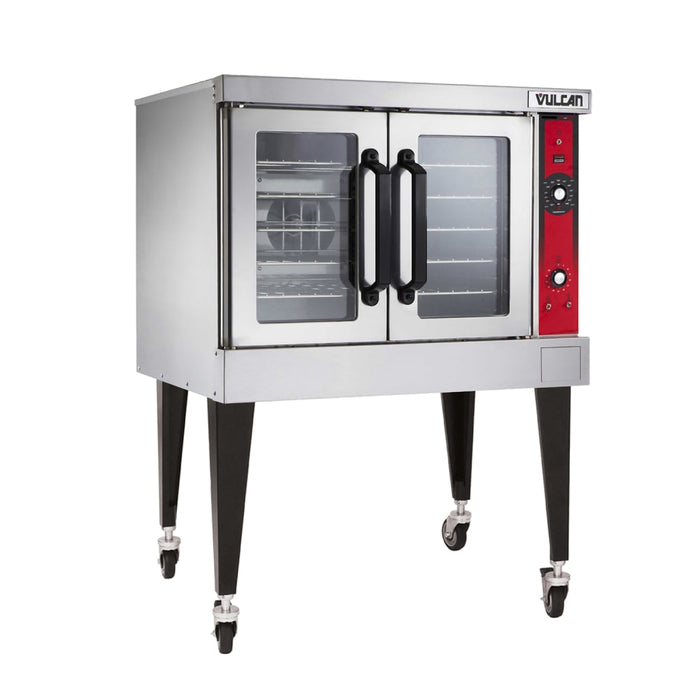

Vulcan VC6ED Bakery Depth Single Full Size Electric Convection Oven - 12.5 Kw, 208v/3ph

SKU VC6ED-2083
Original price $0.00 - Original price $0.00
Original price $0.00
$8,086.00
$8,086.00 - $8,086.00
Current price $8,086.00

The Vulcan VC6ED single-deck convection oven has a deeper design than other Vulcan models, making it ideal for bakeries. Featuring a porcelain enamel interior measuring 29 inches wide by 26 1/8 inches deep by 20 inches high, this oven is equipped with five nickel-plated oven racks that can be adjusted to 11 different positions. Ita€™s heated with electric solid-sheath elements, and a two-speed, 1/2-horsepower oven blower motor helps move air around for even heating. The unita€™s top, rear, sides, bottom, and doors have a built-in, non-sagging insulation, which helps retain heat for back-to-back use. Users can adjust temperatures from 150 to 500 degrees Fahrenheit with solid-state controls, and a 60-minute timer audibly alerts staff when food is ready.

To withstand wear from loading product and opening and closing its doors, the Vulcan VC6ED convection ovena€™s front, sides, and top are made of stainless steel. Its two stainless steel doors open separately, reducing heat loss and improving direct access to product. Users can also peer through the doorsa€™ double-pane windows to manage the cooking process. For stabilization, this 40-inch-wide by 46 1/4-inch-deep by 54 3/4-inch-high unit is supported by 23 3/4-inch-tall painted legs.

  • Part of the VC6E series
  • Bakery-depth design with 1 oven
  • Stainless steel front, top, and sides
  • 5 nickel-plated oven racks
  • 11-position rack guides and positive rack stops
  • Uses electric solid-sheath elements for heating
  • Temperature is adjustable from 150-550 degrees F with solid-state temperature controls
  • 60-minute timer with audible alarm
  • 2-speed, 1/2-horsepower oven blower motor
  • Top, rear, sides, bottom, and doors have built-in, non-sagging insulation
  • 2 independently operated stainless steel doors
  • 2 double-pane windows (1 per door)
  • Oven interior has porcelain enamel construction
  • Oven cool switch drops temperature rapidly
  • Moisture vent prevents dampness
  • 2 interior oven lights
  • 23 3/4-in. painted legs
  • Rear clearance: 2 in.
  • Right side clearance: 4 in.
  • Left side clearance: 1 in.

  • Oven racks: (5) 28 1/4 in. W x 24 1/2 in. D
  • Oven interior: 29 in. W x 26 1/8 in. W x 20 in. H
  • Overall: 40 in. W x 46 1/4 in. D x 54 3/4 in. H
  • 33-35 A, 12.5 kW, 1/2 HP
  • 208 V/60 Hz/3 ph

Specifications

Manufacturer Vulcan
Base Legs
Controls Manual
Depth (in) 45.13
Door Construction Metal with Window
Door Type Independent
Heat Electric
Height (in) 54.75
Hertz 60
Interior Construction Porcelain
kW 12.5
Number of Ovens Single
Oven Interior Style Deep Depth
Pans Per Deck 5
Phase 3
Product Convection Ovens
Product Type Cooking Equipment
Rating Best
Series VC6E Series
Size Full Size
Special Features Deep Depth
Type Floor Model
Voltage 208
Warranty 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in) 40.25
Weight 463.00
