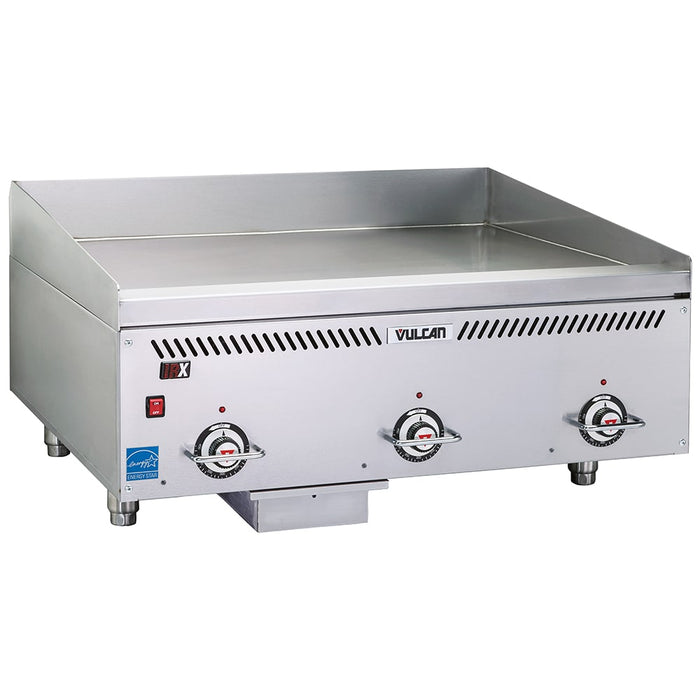

Vulcan VCCG36-AR 36" Gas Griddle W/ Thermostatic Controls - 1" Chrome Plate, Natural Gas
To ensure a long service life in high-volume operations, the Vulcan VCCG36-AR gas griddle is constructed primarily of durable, corrosion-resistant stainless steel. This metal also is simple to clean; to streamline cleaning further, the unit is equipped with a 6-quart grease drawer. Its 1-inch-thick chrome plate is heated by three U-shaped aluminized steel burners, and its temperature range is 200 to 550 degrees Fahrenheit. To prevent users from making accidental temperature adjustments, the knobs are fitted with chrome-plated wire guards.
Enabling operators to stabilize it on uneven surfaces, the Vulcan VCCG36-AR countertop griddle is equipped with adjustable, 4-inch legs. It includes a blade, scraper, and palmetto brush to clean the plate, and its back and side splashes help to control splatter. This unit features an electronic ignition with a pilot protection system to ensure safe operation.
- For countertop use
- Front, sides, and top ledge made of corrosion-resistant stainless steel
- 4-in. stainless steel backsplash and tapered side splashes
- Fully welded aluminized and stainless steel chassis
- Blade, scraper, and palmetto brush included
- 1-in.-thick chrome plate
- Temperature range: 200-550 degrees F
- Each 12-in. cooking zone is adjusted independently with solid-state, thermostatic controls
- Chrome-plated wire knob guards
- 3 U-shaped aluminized steel burners
- Electronic ignition with pilot protection system
- 6-qt. stainless steel grease drawer
- 4-in. legs are adjustable
- 90,000 BTU
- Cooking surface: 36 in. W x 24 in. D
- Overall: 36 in. W x 33 1/10 in. D x 18 4/5 in. H
- 2 A
- 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
- Uses natural gas
- 3/4-in. rear gas connection
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 30000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 36 |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Overall Width (in) | 36 |
| Plate Material | Chrome |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Best |
| Series | VCCG Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 475.00 |
