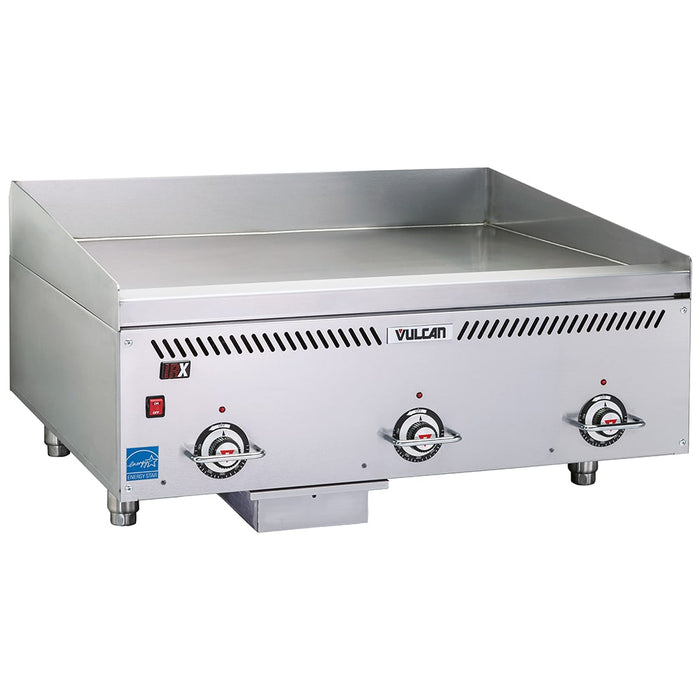

Vulcan VCCG36-IR 36" Gas Griddle W/ Thermostatic Controls - 1" Chrome Plate, Liquid Propane
The Vulcan VCCG36-IR gas griddle is a countertop model measuring 36 inches wide by 33 1/10 inches deep by 18 4/5 inches high. It features a 1-inch-thick chrome plate and comes with a blade, scraper, and palmetto brush so users may clean it properly. It's furnished with back and side splashes to withhold splatter, and oily runoff is captured and stored in a 6-quart grease trough. The trough, along with most of the unit's remainder, is constructed of stainless steela€”a rugged, corrosion-resistant metal that supports heavy use.
Using individual, solid-state thermostats for each cooking zone, operators can adjust the Vulcan VCCG36-IR countertop griddle's temperature between 200 and 550 degrees Fahrenheit. Chrome-plated wire knob guards avert accidental changes and IR® infrared burners optimize heat transfer. This unit is raised on 4-inch legs to facilitate cleaning beneath it, and they can be adjusted to account for uneven surfaces.
- Countertop unit
- Front, sides, and top ledge made of strong stainless steel
- Fully welded aluminized and stainless steel chassis
- 1-in.-thick chrome plate
- Palmetto brush, scraper, and blade included
- Temperature range: 200-550 degrees F
- Chrome-plated wire knob guards
- Splatter contained with 4-in. stainless steel backsplash and tapered side splashes
- Each 12-in. cooking zone controlled by independent, solid-state thermostat
- 3 IRX® infrared burners
- 6-qt. stainless steel grease drawer
- Electronic ignition with pilot protection system
- Raised on adjustable, 4-in. legs
- 72,000 BTU
- Cooking surface: 36 in. W x 24 in. D
- Overall: 36 in. W x 33 1/10 in. D x 18 4/5 in. H
- 2 A
- 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
- Uses LP gas
- 3/4-in. rear gas connection
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 24000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 36 |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Overall Width (in) | 36 |
| Plate Material | Chrome |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Best |
| Series | VCCG Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 475.00 |
