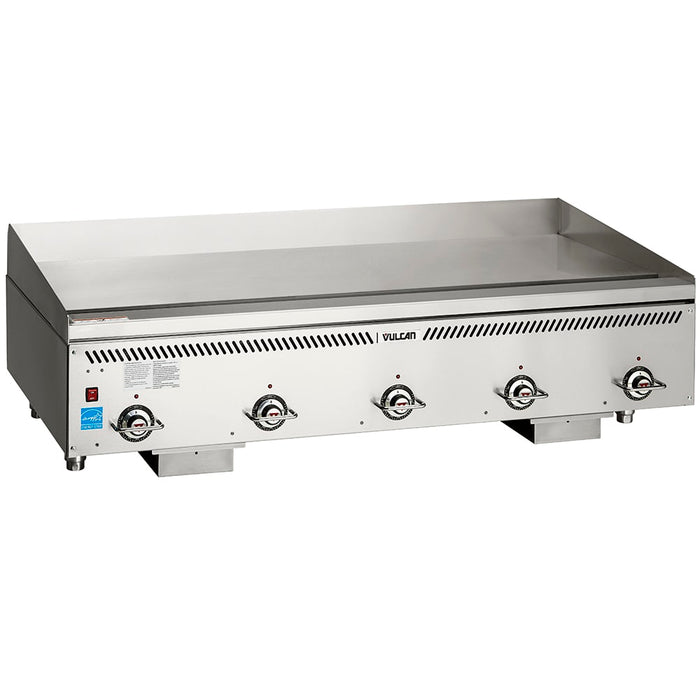

Vulcan VCCG60-AS 60" Gas Griddle W/ Thermostatic Controls - 1" Steel Plate, Natural Gas
Each of the Vulcan VCCG60-AS countertop griddlea€™s five burners are controlled with an individual thermostat, enabling users to set multiple cook zones when preparing a variety of dishes. By setting different temperatures across the griddle, users can cook chicken breasts, burgers, eggs, and pancakes at the same time. Made of 1-inch-thick polished steel, the griddle plate is durable enough to withstand repeated use at high temperatures without warping or cracking. The unita€™s U-shaped atmospheric burners heat the plate evenly to avoid cold spots. Spaced 12 inches apart, the solid-state thermostats have electronic spark ignition.
To prevent accidental thermostat changes, the Vulcan VCCG60-AS gas griddle has chrome wire guards that wrap around the knobsa€™ fronts, shielding them from impacts. The griddlea€™s plate is wrapped with a splatter guard thata€™s 4 inches high in the back and sloped on the sides, protecting adjacent walls and countertops from grease splashes. At the griddlea€™s front, a stainless steel grease trough catches grease and debris and channels it into the unita€™s two 6-quart storage drawers. Resting on adjustable, 4-inch legs, the griddle is raised off countertops, reducing the risk of heat damage.
- Countertop model
- Resists rust with stainless steel front top ledge, sides, and front
- Temperature range: 200-550 degrees F
- Multiple cook zones can be adjusted with 5 separately controlled burners
- Heated with U-shaped atmospheric aluminized steel burners spaced 12 in. apart
- Solid-state thermostats
- Electronic spark ignition with diagnostics for simplified use
- Pilot protection
- 1-in.-thick polished steel griddle plate
- Knob guards are made of chrome wire to shield thermostat controls
- Stainless and aluminized steel chassis is welded for long-term strength
- 14 7/10-in. cooking height
- Built with 4-in. stainless steel backsplash and tapered side splashes
- (2) 6-qt. drawers store grease and crumbs
- Front-mounted stainless steel grease trough transports grease to drawer
- 4-in. adjustable legs
- 150,000 BTU
- Cooking surface: 60 in. W x 24 in. D
- Overall dimensions: 60 in. W x 33 1/10 in. D x 18 4/5 in. H
- 2 A
- 120 V/50-60 Hz/1-ph, NEMA 5-15P plug
- Rear gas connection and pressure regulator: 3/4 in.
- Uses natural gas
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 30000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 60 |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Overall Width (in) | 60 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | VCCG Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 60 |
| Weight | 665.00 |
