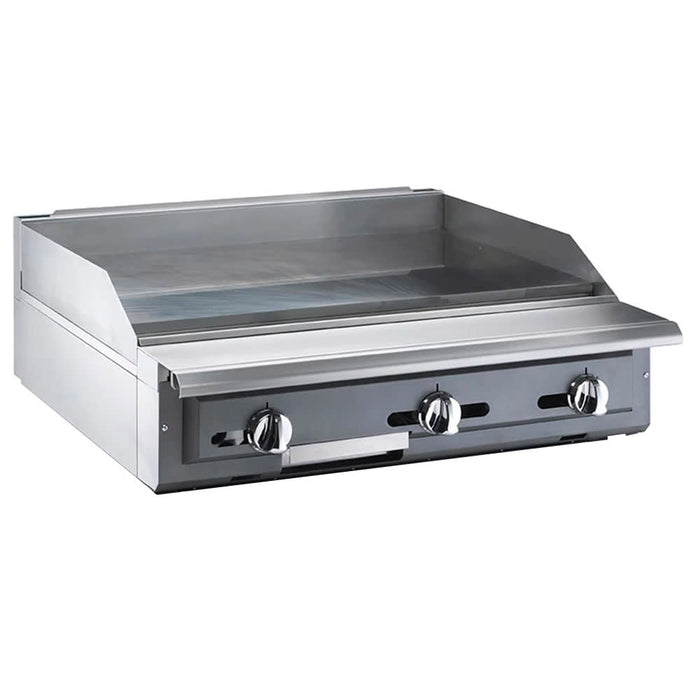

Vulcan VGM36 36" Gas Range Griddle - Modular, Natural Gas
Designed with a stainless steel front, front top ledge, burner box, sides, base, and stub back, the Vulcan VGM36 gas range offers the durability to withstand rigorous use in fast-paced kitchens. It's equipped with three 30,000-BTU burners that have individual pilot lights and manual controls to enable operators to cook at multiple temperatures simultaneously. Because it's a modular unit, this model has no base and can be placed on countertops or equipment stands. For secure placement on surfaces, it sits on 4-inch flanged feet that can be adjusted as needed.
The Vulcan VGM36 griddle range includes a 3/4-inch-thick polished steel griddle plate to accommodate flexible cooking needs. It has a 4-inch-high side splash guard and an extra-deep stainless steel crumb tray to contain messes within the range. Overall, this unit measures 36 inches wide by 36 3/4 inches deep by 17 15/16 inches high and operates with natural gas to ensure heat is distributed evenly through meals.
- Stainless steel front, front top ledge, burner box, sides, base, and stub back
- (3) 30,000-BTU/hr. burners with individual pilot lights
- 3 manual controls (1 per burner)
- 3/4-in.-thick polished steel griddle plate
- 4-in.-high side splash guard and stainless steel stub riser
- Unit rests on 4-inch flanged feet
- Extra-deep crumb tray constructed of stainless steel
- Natural gas
- 90,000 BTU
- 36 in. W x 36 3/4 in. D x 17 15/16 in. H
- 1 1/4-in- diameter front gas manifold
- 1 1/4-in. rear gas connection (capped)
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Modular |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Controls | Manual |
| Depth (in) | 36.75 |
| Gas Type | NG |
| Griddle Width (in) | 36 |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | No Oven |
| Plate Thickness (in) | 3/4 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Griddle |
| Rating | Best |
| Series | V Series |
| Total BTU | 90000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 404.00 |
