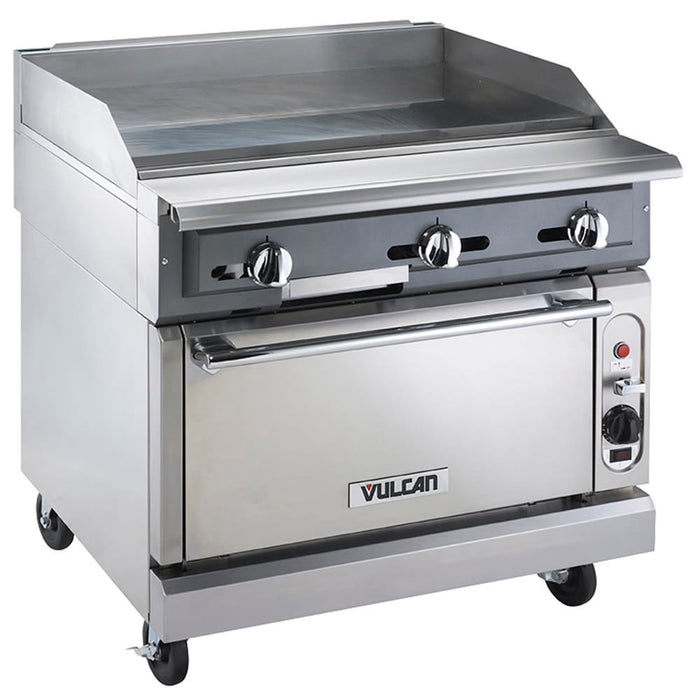

Vulcan VGM36C 36" Gas Range W/ Full Griddle & Convection Oven, Liquid Propane
The Vulcan VGM36C heavy-duty gas range with griddle top endures heavy use because its front, sides, base, back, and ledge are all made of sturdy stainless steel. The stainless steel griddle plate is 3/4 inches thick to resist warping over time. The 36-inch-wide plate has three separate sections with their own heat dials and pilot flames, meaning a different food can cook in each section simultaneously, and during slow hours, unnecessary sections can be shut off. The plate's back and sides are bordered by the 4-inch-tall splash that catches stray splatter, while the 8-inch ledge on the front can be used to plate dishes.
The convection oven base has a sturdy door attached with counterweighted hinges. Inside, the included oven racks can be slid into one of three positions, and staff can set the temperature at a level between 175 and 550 degrees Fahrenheit. The oven interior is porcelain coated on the bottom and sidesa€”making it slick and resistant to congealing fooda€”to expedite cleaning the Vulcan VGM36C griddle range.
- 3/4-in.-thick stainless steel griddle plate resists warping
- Burners have separate controls and pilot flames
- 8-in. front ledge to prep dishes
- 4-in. splashes protect walls and surrounding equipment from splatter
- Deep crumb tray can hold a lot of waste
- Convection oven base
- Oven temperature range: 175-550 degrees F
- Porcelain coating on the sides and bottom of the oven interior reduces food buildup
- 2 oven racks and 3 rack positions
- Heavy-duty oven door with counterweighted hinges
- Made mostly of stainless steel for durability and rust resistance
- (3) 30,000-BTU top burners and 32,000-BTU convection oven burner
- 122,000 total BTU
- Oven interior: 27 in. W x 27 in. D x 13 in. H
- Overall: 36 in. W x 36 3/4 in. D x 40 1/2 in. H
- 1 1/4-in. front manifold connection
- 1 1/4-in. capped rear gas connection
- 4 A
- 115 V/60 Hz/1 ph, 7-ft. cord with plug
Specifications
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Heavy Duty |
| Base | Convection Oven |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Controls | Thermostatic |
| Convection Oven BTU/hr | 32000 |
| Convection Oven Dimensions | 27"W x 27"D x 13"H |
| Depth (in) | 36.75 |
| Gas Inlet Size | 1.25 |
| Gas Type | LP |
| Griddle Location | Full |
| Griddle Width (in) | 36 |
| Heat | Gas/Electric |
| Height (in) | 36 |
| Hertz | 60 |
| Installation Type | Freestanding |
| Max Temp | 650 |
| Number of Burners | None |
| Number of Ovens | Single |
| Phase | 1 |
| Plate Thickness (in) | 3/4 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 3 |
| Racks per Convection Oven | 2 |
| Range Configuration | Griddle |
| Rating | Best |
| Series | V Series |
| Total BTU | 122000 |
| Vent | Stub Riser |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 763.00 |
