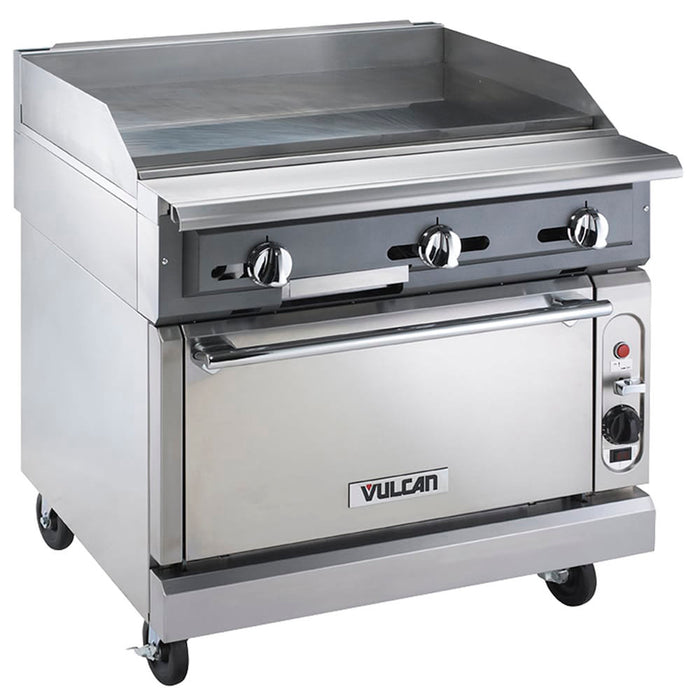

Vulcan VGM36S 36" Gas Range W/ Griddle & Standard Oven, Natural Gas

SKU VGM36S-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$12,193.81
$12,193.81 - $12,193.81
Current price $12,193.81

The Vulcan VGM36 gas range's front, front top ledge, burner box, sides, base, and stub back are made of stainless steel for prolonged durability, and its 6-inch adjustable legs enable level use on uneven floors. It includes three burners that operate at 30,000 BTU and have individual pilots and manual controls so various foods can be cooked at different temperatures simultaneously. To confine messes, it comes with a 4-inch-high side splash guard and an extra-deep stainless steel crumb tray at its front. Overall, this unit measures 36 inches wide by 41 7/8 inches deep by 40 1/2 inches high and runs on natural gas to ensure dishes are heated evenly.

Designed with a standard oven under its griddle, the Vulcan VGM36 commercial range can roast chicken and vegetables, bake desserts, or broil meats. Its temperature can be set between 150 to 550 degrees Fahrenheit, and it includes one rack that can be placed in one of three rack positions to accommodate larger items such as roasts. It also has a heavy-duty door with counterweight hinges for simple opening and closing. For easy cleaning, the oven's bottom, sides, and interior door panel are constructed of porcelain. This standard oven measures 27 inches wide by 27 inches deep by 13 inches high and operates at 50,000 BTU.

  • Stainless steel front, front top ledge, burner box, sides, base, and stub back
  • (3) 30,000 BTU/hr. burners
  • Individual pilots and controls for each burner
  • 3/4-in.-thick polished steel griddle plate
  • 4-in. stub riser made of stainless steel
  • 6-in. adjustable legs for resting on uneven surfaces
  • Extra-deep stainless steel crumb tray and 4-in.-high side splash guard

  • 50,000 BTU/hr
  • Bottom, sides, and interior door panel made of porcelain
  • Temperature range: 150-550 degrees F
  • Includes one rack with 3 possible rack positions
  • Counterweight door hinges support heavy-duty door

  • Natural gas
  • Total BTU: 140,000
  • Oven interior: 27 in. W x 27 in. D x 13 in. H
  • Overall: 36 in. W x 41 7/8 in. D x 40 1/2 in. H
  • 1 1/4-in.-diameter front gas manifold
  • 1 1/4-in. rear gas connection (capped)

Specifications

Manufacturer Vulcan
Application Heavy Duty
Base Standard Oven
BTU / Burner 30000
Burner Configuration Standard
Burner Style None
Burner Type(s) None
Controls Manual
Depth (in) 36.75
Gas Type NG
Griddle Width (in) 36
Heat Gas
Height (in) 40.5
Installation Type Freestanding
Number of Burners None
Number of Ovens Single
Plate Thickness (in) 3/4
Product Gas Ranges
Product Type Cooking Equipment
Rack Positions per Standard Oven 3
Racks per Standard Oven 1
Range Configuration Griddle
Rating Best
Series V Series
Total BTU 140000
Vent Stub Back
Warranty 1-year Limited Parts & Labor
Width (in) 36
Weight 685.00
