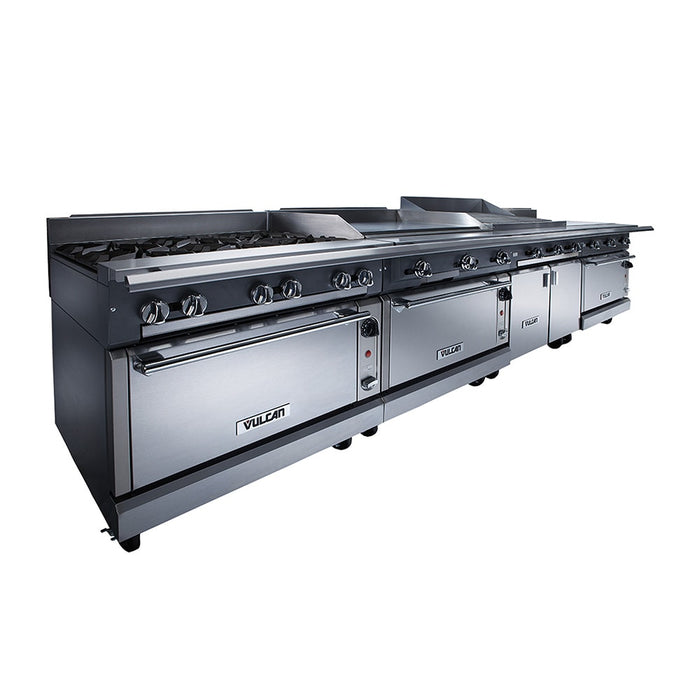

Vulcan VGT24B 24" Gas Range W/ Griddle & Storage Base, Liquid Propane
To create a convenient workstation, the Vulcan VGT24B V-series heavy-duty range boasts a 24-inch-wide griddle on top of a cabinet base. This 24-inch-wide by 36 3/4-inch-deep by 36-inch-tall unit's base is lined with universal rack guides that accommodate the included removable shelf. Oil, spices, flour, utensils, and cookware can be stored on the shelf, and to minimize the chance of stored contents falling out, a hinged stainless steel door encases the base. Like the door, the front, front top ledge, sides, base, burner box, and stub back are made of stainless steel for long-term durability and rust resistance. For stabilization during use, its 6-inch-tall legs can be raised or lowered to level on sloped or uneven surfaces.
The Vulcan VGT24B range is powered by LP gas, and its two burners can output 60,000 BTUs per hour. Since each burner has an individual pilot light, half of the griddle surface can be heated to save energy during slow periods. The burners' corresponding snap-action thermostatic controls enable users to adjust temperatures to accommodate different cooking requirements. To reduce the lag time associated with reheating the surface for consecutive uses, its polished steel griddle plate measures 3/4 of an inch thicka€”dense enough to retain heat and resist warping through repeated heating and cooling. The splash guards along the unit's sides measure 4 inches tall to protect nearby surfaces from popping oil.
- Part of Vulcan's V series
- 24-in.-wide griddle with (2) 30,000-BTU burners
- 3/4-in.-thick polished steel griddle plate
- Corresponding pilot light and snap-action thermostatic controls for each burner
- Stainless steel front, front top ledge, burner box, sides, base, stub back, and hinged cabinet door
- 4-in.-tall side splashes
- 4-in. stub riser
- Cabinet base with universal rack guides and shelf
- Fitted with adjustable 6-in.-tall legs
- 60,000 BTU
- 24 in. W x 36 3/4 in. D x 36 in. H
- Powered by LP gas
- 1 1/4-in. diameter front gas manifold
- 1 1/4-in. rear gas connection (capped)
Specifications
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Storage |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Controls | Thermostatic |
| Depth (in) | 36.75 |
| Gas Type | LP |
| Griddle Width (in) | 24 |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | No Oven |
| Plate Thickness (in) | 3/4 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Griddle |
| Rating | Best |
| Series | V Series |
| Total BTU | 60000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 360.00 |
