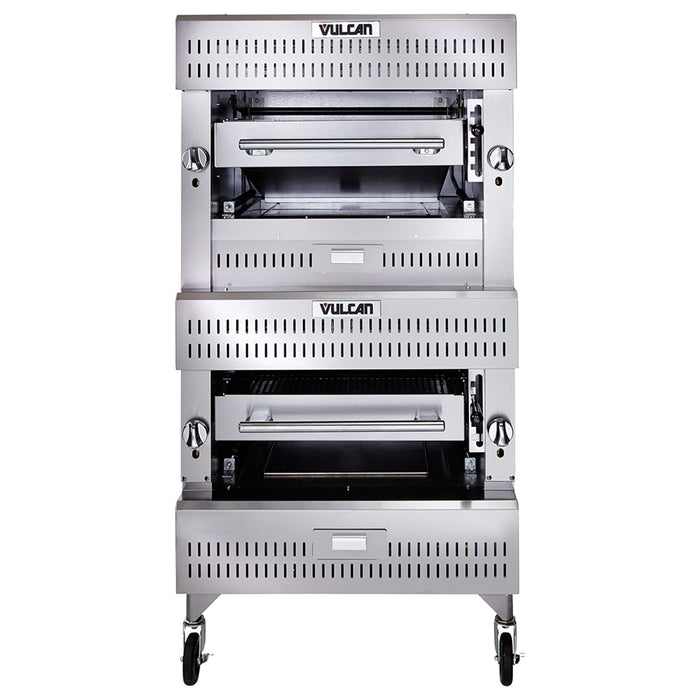

Vulcan VIB2 Double Deck Natural Gas Broiler - Infrared Over Ceramic, 200,000 BTU
Heated with natural gas, the Vulcan VIB2 double-deck broiler has two levels. The infrared top level uses four 25,000-BTU ceramic tile-faced burners, and the ceramic bottom broiler has three 32,500-BTU cast iron burners with ceramic tile radiants. Each deck has two infinite heat valves to increase operator control over cooking results. A variety of foods fit on the two 25 1/2-inch-wide by 24 1/2-inch-deep cooking grids, which are made of cold-rolled steel bars for heat conduction. These grids can be raised or lowered in five different positions on roller bearings.
The Vulcan VIB2 broiler has a 36-inch-wide by 37 1/2-inch-deep by 74-inch-high frame, and ita€™s supported by 5-inch casters for efficient movement when needed. Made of durable stainless steel, it can endure high-volume use and daily wear. Insulation is integrated between the outer and inner walls to help retain heat for back-to-back use, and a rear gas connection with a 1-inch regulator is supplied for accessibility.
- Part of the V series
- Double-deck structure
- Stainless steel construction
- Top deck is equipped with (4) 25,000-BTU ceramic tile-faced burners
- Bottom deck includes (3) 32,500-BTU cast iron burners with ceramic tile radiants
- Insulation between outer and inner walls
- 2 infinite heat valves per level
- 2 cooking grids with 5 adjustable positions
- Grids are mounted on adjustable roller bearings
- (4) 5-in. casters
- 6-in. clearance required for each side and rear
- 200,000 BTU
- Cooking grids: (2) 25 1/2 in. W x 24 1/2 in. D
- Overall: 36 in. W x 37 1/2 in. D x 74 in. H
- Uses natural gas
- Rear gas connection with 1-in. regulator
Specifications
| Manufacturer | Vulcan |
| Gas Type | NG |
| Heat | Gas |
| Product | Upright Broilers |
| Product Type | Cooking Equipment |
| Series | V Series |
| Total BTU | 200000 |
| Type | Double |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 1100.00 |
