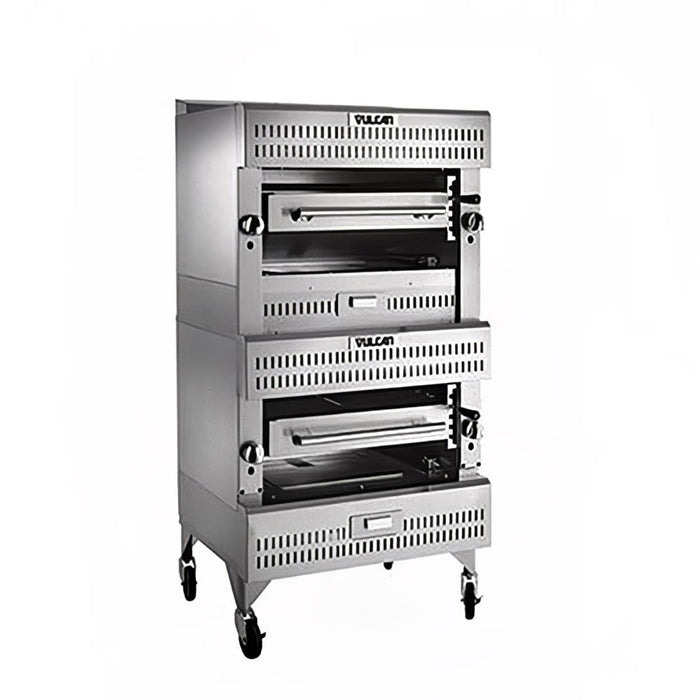

Vulcan VIR1F Deck-Broiler W/ Infrared Burners, Refrigerated Base, Natural Gas
The Vulcan VIR1F infrared upright broiler has a 25 1/2-inch-wide by 24 1/2-inch-deep cooking grid to broil different foods simultaneously. Made of cold-rolled steel bars, the grid creates grill marks for presentation; its openings also facilitate air circulation around product for even heating. Using natural gas, it's heated by four 25,000-BTU infrared burners, which can be turned on with the pilot ignition system. User can adjust burner output with two infinite heat valves, and the cooking grid can be raised or lowered in five different positions to achieve desired results.
The bottom deck of the Vulcan VIR1F upright broiler is a refrigerator, which can store meats, vegetables, and other ingredients prior to cooking. The unit's front, front top, ledge, base, stub back, and top are made of stainless steel for durability, and it's supported by 6-inch stainless steel legs for stability. Overall, this broiler measures 36 inches wide by 42 5/8 inches deep by 77 1/8 inches high and generates 100,000 BTUs per hour.
- Part of the V Series
- Top level has a broiler
- Bottom level is a refrigerated base
- (4) 25,000-BTU burners
- Accessible pilot ignition system
- 2 infinite heat controls for burners
- Spring-balanced, cold-rolled steel cooking grid with 5 positions
- Front, top front ledge, and sides composed of stainless steel
- 1 1/4-in.-diameter front gas manifold
- Full-width, floating stainless steel drip pan
- 6-in. adjustable stainless steel legs
- Rear clearance: 6 in.
- 100,000 BTU
- Cooking grid: 25 1/2 in. W x 24 1/2 in. D
- Overall: 36 in. W x 42 5/8 in. D x 77 1/8 in. H
- Uses natural gas
- 1 1/4-in. rear gas connection
Specifications
| Manufacturer | Vulcan |
| Gas Type | NG |
| Heat | Gas |
| Product | Upright Broilers |
| Product Type | Cooking Equipment |
| Series | V Series |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 525.00 |
